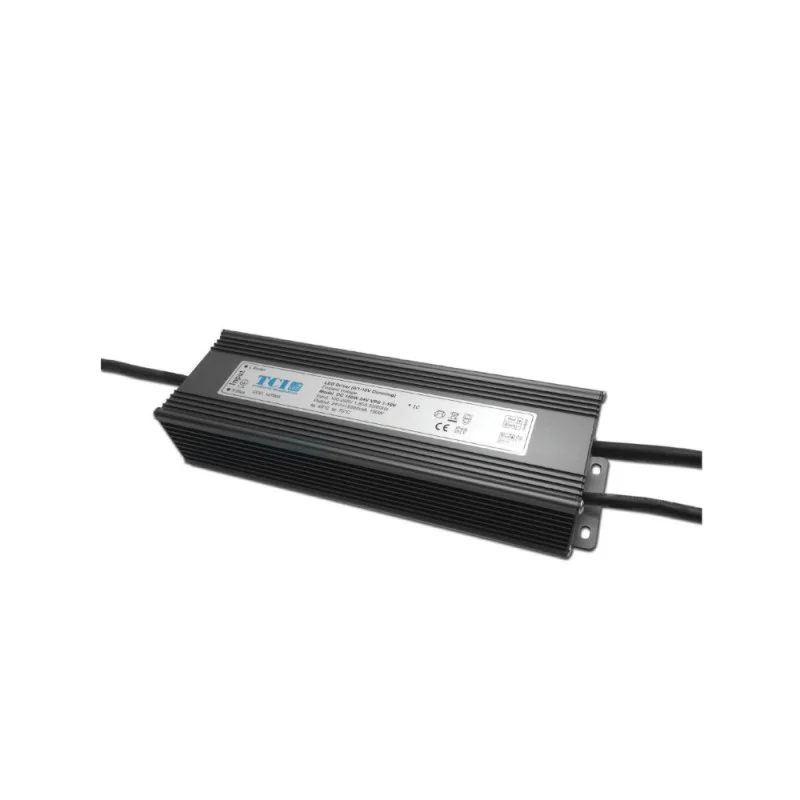

TCI Driver LED VPS 150W 12V IP66 Dim

Product Information:

Features

Dimmable electronic driver with output voltage for LED modules.

Independent driver with case IP66.

Class I protection against electric shock for direct or indirect contact.

Supplied with connecting leads on primary and secondary circuits for connection.

If the input cable is damaged it can only be replaced by authorized personnel.

Protections against mains voltage spikes.

Operation Mode

Switching off only on primary side (L-N).

Light regulation 1- 100 % by means of 1...10 V interface (I < 0,35 mA), 600 Kohm potentiometer or 10 V PWM signal (100Hz...3KHz).

Specific dimming cable for 0/1...10 Vdc electronic potentiometer (0/1...10 V local dimming, double insulation required for external connection).

LED load must be distributed on both output terminal block.

For more information, see the attached PDF
