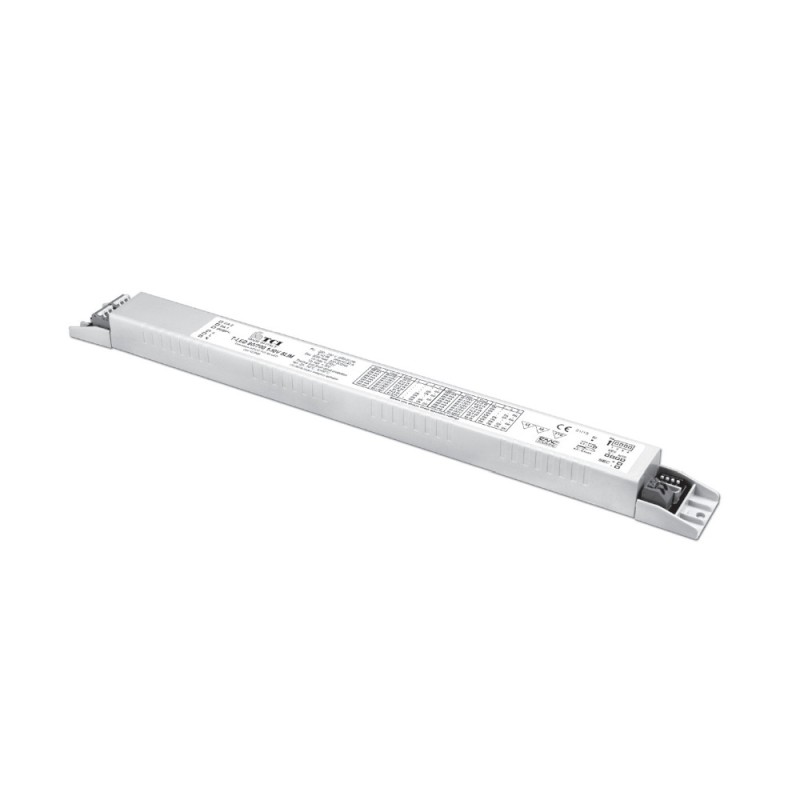

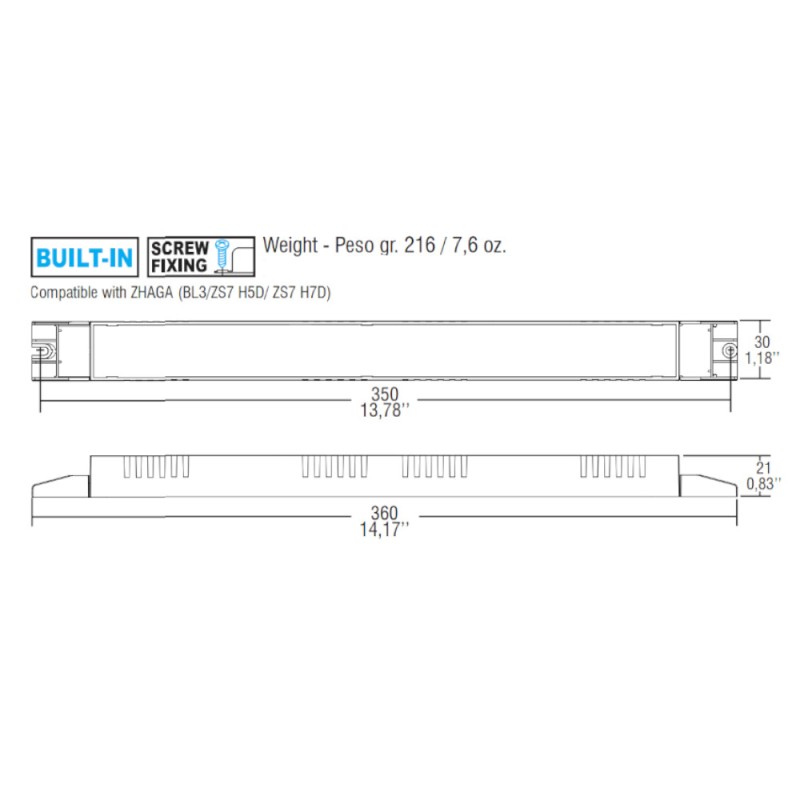

TCI Driver LED T 80/700 Multipower 1-10V Dimmable

Product Information:

Features

Multipower driver supplied with dip-switch for the selection of the output current.

Driver for built-in use.

It can be used for lighting equipment in protection class I.

Active Power Factor Corrector.

Analogic input for thermal sensor connection.

Current regulation ±5 % including temperature variations.

Output is not isolated from the input.

Input and output terminal blocks on the opposite sides (wire cross-section up to 1,5 mm2 / AWG15).

Protections:

- against overheating and short circuits;

- against mains voltage spikes;

- against overloads.

Thermal protection = C.5.e.

Operation Mode

Light regulation 10-100 % by means of 1-10 V (I=1 mA) and 0/10-100 % by means of PUSH function.

Specific dimming terminal connection with a 1...10 Vdc electronic potentiometer (1…10 V local dimming, double insulation required for external connection).

Light regulation 0/10 - 100 % by means of PUSH function (mains voltage):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and

 give the desired command again.

Possibility to use PUSH function to 4/5 drivers.

Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the mains cable.

ATTENTION: only use normally open push buttons with no incorporated warning light

-42W -  30...120V -  350 mA cost.

-45W -  30...120V -  375 mA cost.

-48W  - 30...120V -  400 mA cost.

-51W -  30...120V -  425 mA cost.

-54W -  30...120V -  450 mA cost.

-57W - 30...120V -  475 mA cost.

-60W -  30...120V -  500 mA cost.

-63W -  30...120V -  525 mA cost.

-66W -  30...120V -  550 mA cost.

-69W -  30...120V -  575 mA cost.

-72W -  30...120V -  600 mA cost.

-75W -  30...120V -  625 mA cost.

-78W -  30...120V -  650 mA cost.

-80W -  30...118V -  675 mA cost.

-80W -  30...114V -  700 mA cost.

For more information, see the attached PDF
