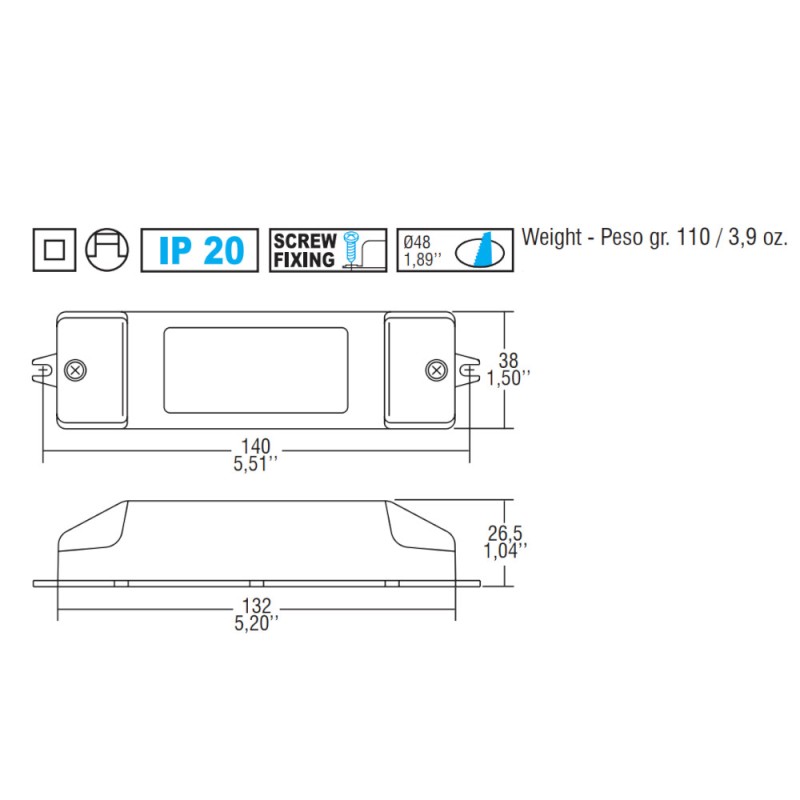

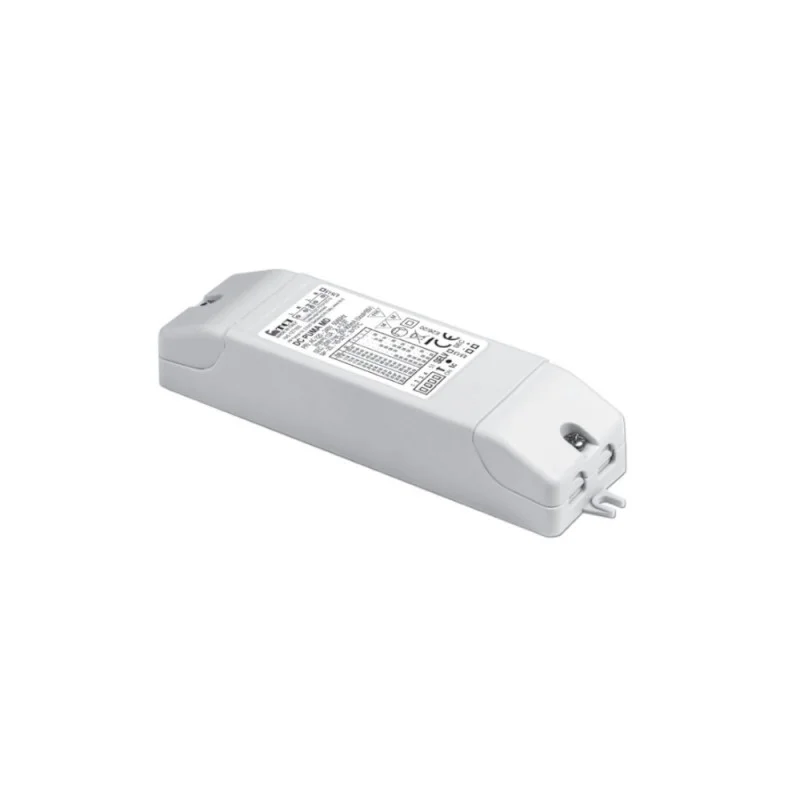

TCI PUMA MD adjustable constant current electronic ballast with DIP-SWITCH from 11-20w/250-900mA adjustable with IGBT "phase cut" dimmer. Dimensions: 140x38x26.5mm
Features

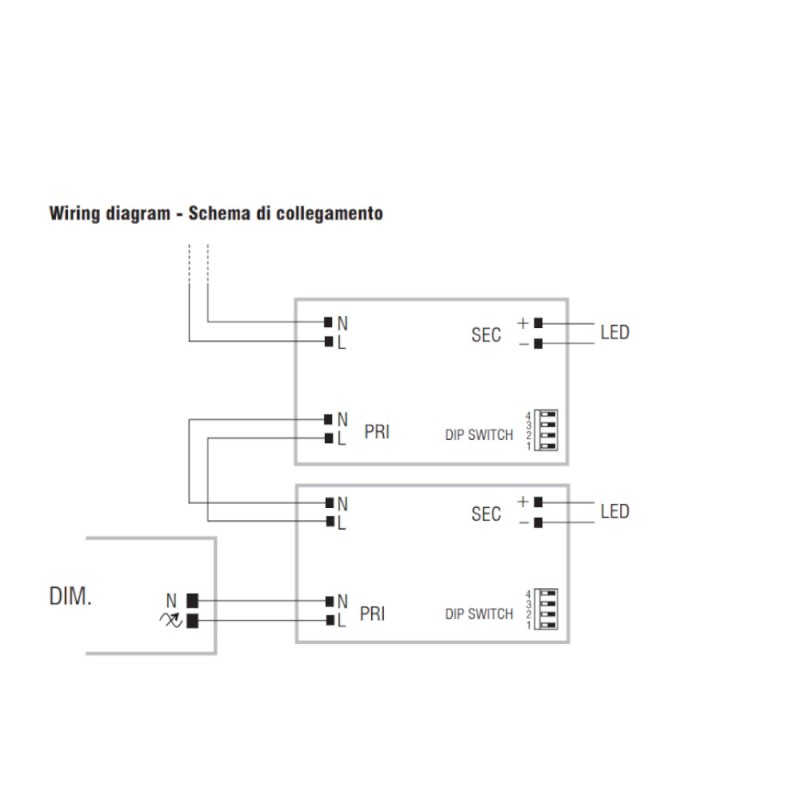

Double input terminal blocks to loop other driver.
Multipower driver supplied with dip-switch for the selection of the output current.
IP20 independent driver, for indoor use.
Class II protection against electric shock for direct or indirect contact.
Active Power Factor Corrector.
Current regulation ±5 % including temperature variations.
Input and output terminal blocks on the opposite side (wire cross-section up to 1,5 mm2 / AWG15).
Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
Protections
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
Thermal protection = C.5.a.
Operation Mode
Regulating driver with "phase cut-off" dimmer IGBT.
Full AM DIMMING: 3-100%.
-11W - 7...44V - 250 mA cost.
-13W - 7...44V - 300 mA cost.
-15W - 7...44V - 350 mA cost.
-17W - 7...43V - 400 mA cost.
-19W - 7...43V - 450 mA cost.
-20W - 7...40V - 500 mA cost.
-20W - 7...36V - 550 mA cost.
-20W - 7...33V - 600 mA cost.
-20W - 7...30V - 650 mA cost.
-20W - 7...28V - 700 mA cost.
-20W - 7...27V - 750 mA cost.
-20W - 7...25V - 800 mA cost.
-20W - 7...24V - 850 mA cost.
-20W - 7...22V - 900 mA cost.
For more information, see the attached PDF
