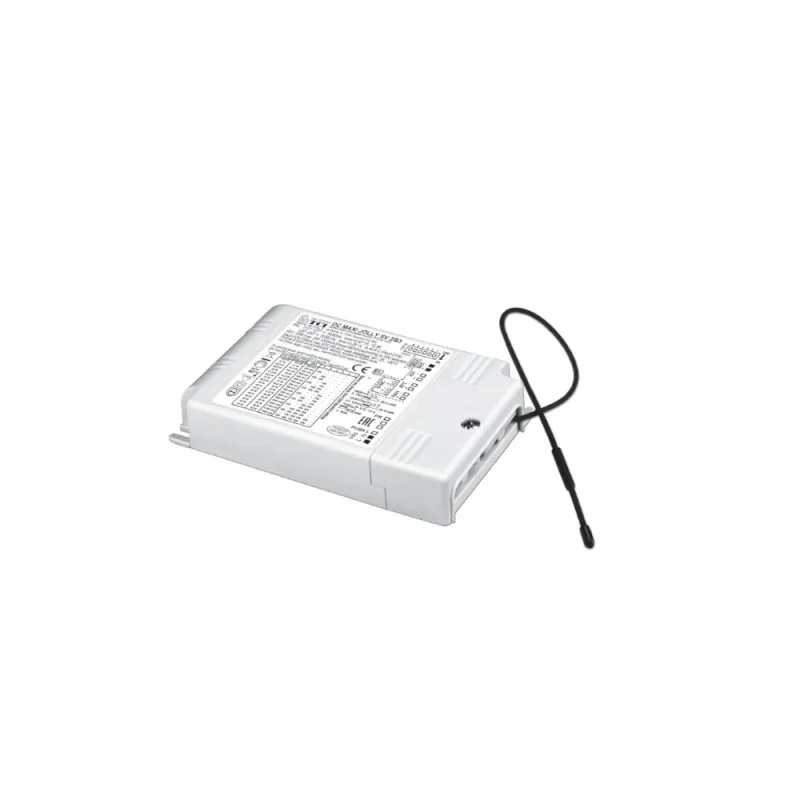

TCI Driver LED MAXI JOLLY 50W ZB3 ZIGBEE

Product Information:

Features

Multipower driver supplied with dip-switch for the selection of the output current with integrated wireless ZIGBEE module.

IP20 independent driver, for indoor use.

Class II protection against electric shock for direct or indirect contact.

Active Power Factor Corrector.

Analogical input (NTC) for thermal sensor connection.

Auxiliary output 12 V max. 100 mA.

Current regulation ±5 % including temperature variations.

Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2  / AWG13).

Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.

Protections:

- against overheating and short circuits;

- against mains voltage spikes;

- against overloads.

Thermal protection = C.5.a.

Operation Mode

Light regulation 0/1 - 100 % by means of PUSH function and standard ZIGBEE devices for ZIGBEE integrated WIRELESS module.

Designed to work with ZIGBEE systems.

Full AM DIMMING: 1-100%.

Light regulation 0/0,5 - 100 % by means of PUSH function (mains voltage):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give

 the desired command again;

- dimming level memory at mains restore.

Possibility to use PUSH function to 4/5 drivers.

Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 110 - 240 Volt mains cable.

ATTENTION: only use normally open push buttons with no incorporated warning light.

-18,5 (18,5) -  10...53 -  350 mA cost.

-21 (21) -  10...53 -  400 mA cost.

-23,5 (23,5) -  10...53 -  450 mA cost.

-26,5 (26,5) -  10...53 -  500 mA cost.

-29 (29) -  10...53 -  550 mA cost.

-31,5 (31,5) -  10...53 -  600 mA cost.

-34,5 (34,5) -  10...53 -  650 mA cost.

-37 (37) -  10...53 -  700 mA cost.

-39,5 (39,5) -  10...53 -  750 mA cost.

-42 (40) -  10...53 -  800 mA cost.

-45 (40) -  10...53 -  850 mA cost.

-47,5 (40) -  10...53 -  900 mA cost.

-50 (40) -  10...52 -  950 mA cost.

-50 (40) -  10...50 -  1 A cost.

-50 (40) -  10...48 -  1,05 A cost.

-50 (40) -  10...45 -  1,1 A cost.

-50 (40) - 10...43 -  1,15 A cost.

-50 (40) -  10...41 -  1,2 A cost.

*In brackets the powers in 110/120V

For more information, see the attached PDF

TCI wireless products belonging to this family have as a plus the ZigBee standard protocol that makes them compatible with a very wide range of ZigBee devices already available on the market. The capacity of this system is highly extended as it is based on a mesh network, while all the easyto-fi nd accessories guarantee its extreme fl exibility in terms of building an ad-hoc solution. Our ZigBee products are ideal also for all those applications requiring both on-site and remotecontrol to achieve important cost savings, thanks to the scheduling via gateway and the monitoring of consumptions  with a wattmeter. All the information can be collected and stored in the Cloud.
