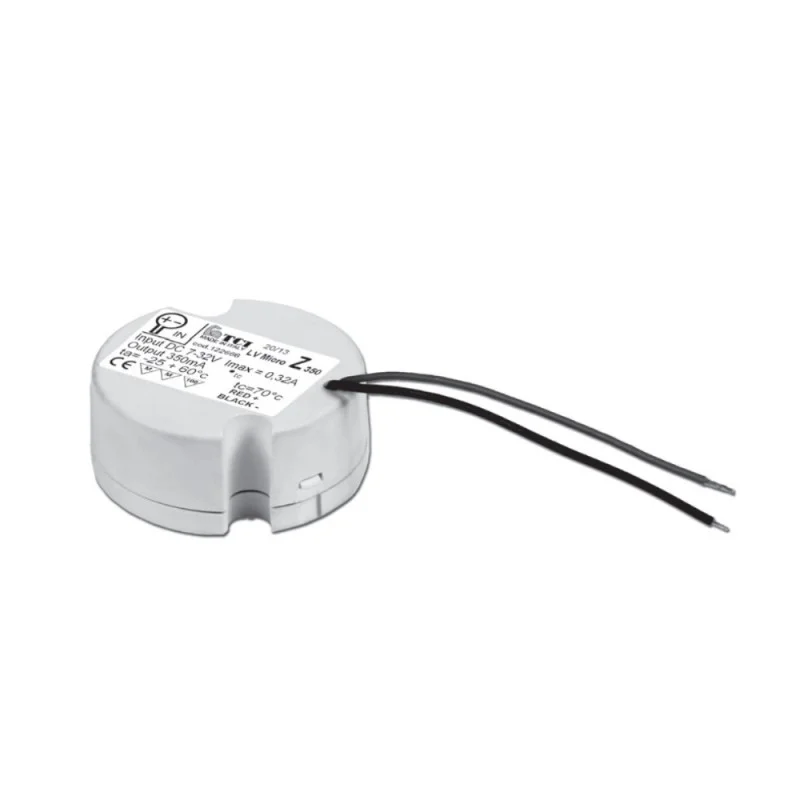

TCI Driver LED LV MICRO Z LED 10w 350mA

Product Information:

Features

Not dimmable driver. Driver for built-in use.

It accepts input PWM regulating signals.

Extremely low safety voltage (9 ÷ 32 V).

It can be used for lighting equipment in protection class III.

Input and output connections on the opposite sides.

Single terminal block on primary circuit (wire cross-section up to 1,5 mm2 / AWG15).

Supplied with cables on secondary circuits for connection.

Ultra compact size.

Protections

-against overheating and short

-circuits, against mains voltage spikes

-polarity switching at input against overloads.

Current regulation -8 %...+5 % including temperature variations.

Nominal tension: 9÷32 Vd

Number of connectable LEDs according to the input voltage: 9 Vdc - 1x1w led : 12 Vdc - 1...2/3x1w led : 24 Vdc - 1...5x1w led : 28 Vdc - 1...6x1w led
