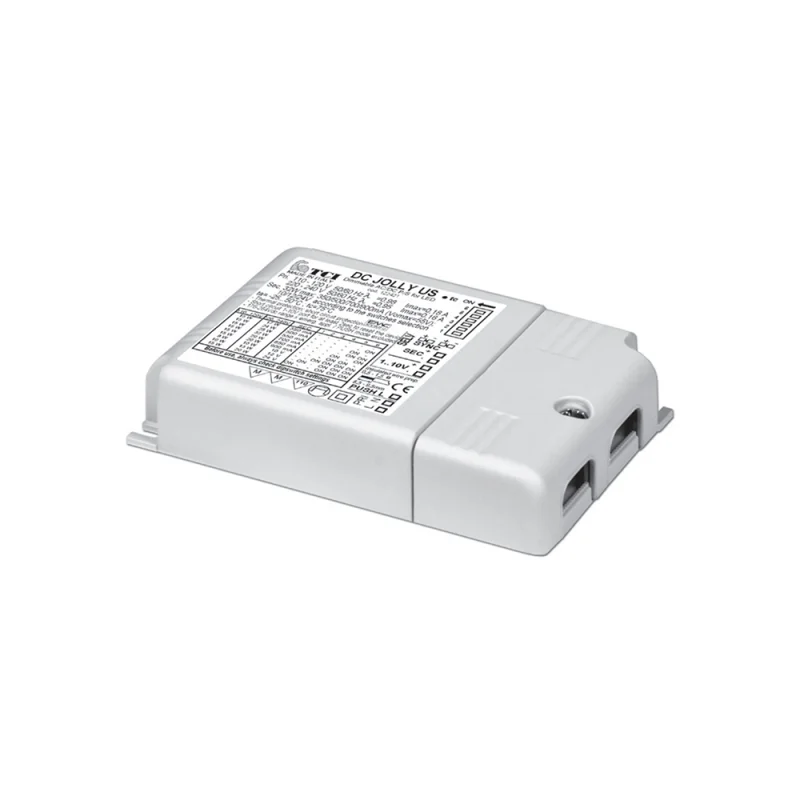

TCI Driver LED DC JOLLY 32W Dimmable

The TCI LED Driver DC JOLLY 32W Dimmable is a highly flexible constant current driver designed for professional LED lighting installations. Through dip-switch output current selection, the device can be configured across 14 different current levels, ranging from 250 mA to 900 mA, with a maximum output power of 32W. Its universal 100-240V AC input voltage ensures full compatibility with electrical systems in Europe, Australia, USA, UK and Japan.

This dimmable TCI LED driver is the ideal solution for design lighting systems requiring precise brightness control and maximum installation versatility. It also supports constant voltage output at 12V and 24V, further broadening its application range.

Main technical features

The driver supports brightness adjustment from 0/1 to 100% via PUSH function, local 0/1...10V interface or 100 KΩ potentiometer. The default regulation mode is AM+PWM (1-25% PWM at 2 kHz, 25-100% AM), with the option to switch to PWM-only mode at 240 Hz by removing jumper JP3. Up to 10 drivers can be synchronised in Master/Slave configuration, and DALI and DMX control is supported via dedicated input. The compact dimensions are 103 x 67 x 21 mm.

Safety and protection

The TCI JOLLY 32W features insulation class II and a protection degree of IP20, ensuring electrical safety for recessed and indoor installations. Automatic restoration of the dimming level upon power return guarantees operational continuity and long-term reliability.

Applications

Ideal for recessed LED lighting systems, LED strips, ceiling fixtures and architectural lighting solutions requiring precise dimming and compatibility with advanced control protocols such as DALI and DMX.
