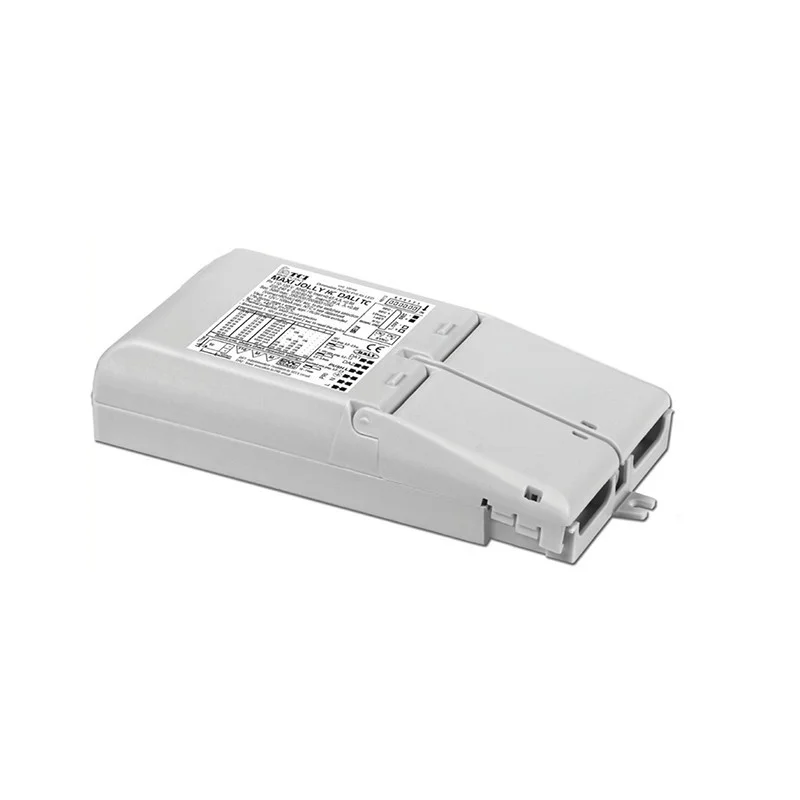

TCI LED Power Supply 55W DC Maxi Jolly HC Dali TC Push, 0/1-10V

Product Information:

. Double terminal blocks to loop other driver (max. 5 A).
. Multipower driver supplied with dip-switch for the selection of the output current.
. IP20 independent driver, for indoor use.
. Class I protection against electric shock for direct or indirect contact.
. Active Power Factor Corrector.
. Analogical input for thermal sensor connection.
. Auxiliary output 12 V max. 50 mA.
. Current regulation ±5 % including temperature variations.
. Input and output terminal blocks on the same side (wire cross-section up to 1,5 - 2,5 mm2 / AWG15 - AWG13).
. Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.

. Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
. Thermal protection = C.5.a.

Dip-switc selection of the output Variants:

45W (40) 2...44V 1,05 A cost

52W (40) 2...44V 1,2 A cost.

55W (40) 2...39V 1,4 A cost.

55W (40) 2...35V 1,6 A cost.

55W (40) 2...30V 1,75 A cost.

55W (40) 2...26V 2,1 A cost.

55W (40W) 48V

Operation Mode

. Light regulation 0/0,5 - 100 % by means of PUSH function, 0/1...10 V interface (I=1 mA) or 100 Kohm potentiometer and DALI.
. Features DALI dimming:
- memory function for sets or light groups;
- recall of stored functions.
. Designed to work with DALI-2 systems.
. Light regulation 0/0,5 - 100 % by means of PUSH function (mains voltage):
- a short push to turn on and off;
- a longer push to increase or decrease light intensity;
- regulation automatically stops at minimum and maximum values;
- for another on, regulation or off command, release the push button and give
the desired command again.
- dimming level memory at mains restore.
. Possibility to use PUSH function to 4/5 drivers without sync cable.
. Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 110 - 240 Volt mains cable.
. ATTENTION: only use normally open push buttons with no incorporated warning light.
. Specific dimming terminal connection with a 0/1...10 Vdc electronic potentiometer (0/1-10 V local dimming, double insulation required for external connection).
. Max. 10 synchronised drivers of which only one can be controlled (1 Master + 9 Slaves).
. Synchronization cable is separately supplied.
