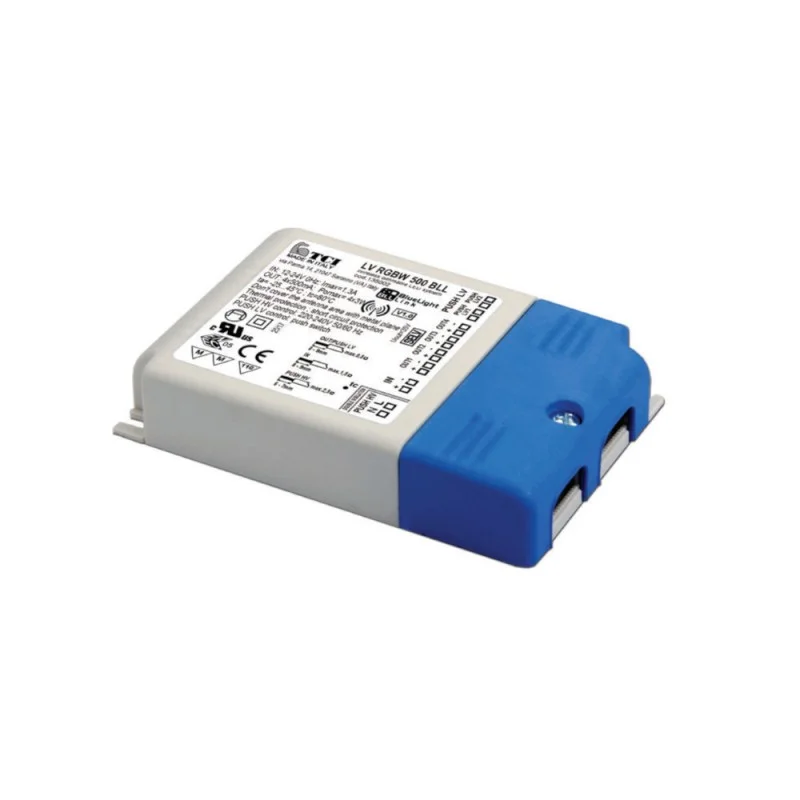

TCI Converter LV RGBW 500 BLL 4X500mA

Product Information:

Features:Low Voltage converter 12/24V to 4 x 500 mA with integrated wireless BLL module. 135002: internal antenna of the wireless module. IP20 independent driver, for indoor use. Extremely low safety voltage (12÷24 V). Class II protection against electric shock for direct or indirect contact. Driver can be secured with slot for screws.

Protections:

- against overheating and short circuits;

- against overloads;

- polarity switching at input;

- protection fuse at input.

Operation Mode: Light regulation 0/1 - 100 % by means of PUSH HV / LV function and APP or compatible devices for BLL integrated WIRELESS module.

Features of remote control dimming by APP:

- can turn on and off;

- independent regulation of 4 channels (RGB / RGBW / SINGLE CHANNEL / 2 CHANNELS);

- light show play.

Light regulation 0/1 - 100 % by means of PUSH HV / LV function:

- a short push to turn ON and OFF;

- a longer push from ON state to enable colour selection mode;

- a longer push from OFF state to enable colours sequence mode;

- a longer push to increase or decrease light intensity;

- colour memory at mains restore.

PUSH HV: High Voltage Push connected to the mains (normally open). PUSH LV: Low Voltage Push, no connection to the main (normally open). INHIBIT: to suspend the power output but not stopping the current mode (colours sequence or APP scenes). Maximum length of the cable, from push button to last driver, must be max. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 240 V mains cable. ATTENTION: only use normally open push buttons with no incorporated warning light.

-12-24V in DC - 2...6V out DC- 4X500mA - 4X3W

For more information, see the attached PDF.
