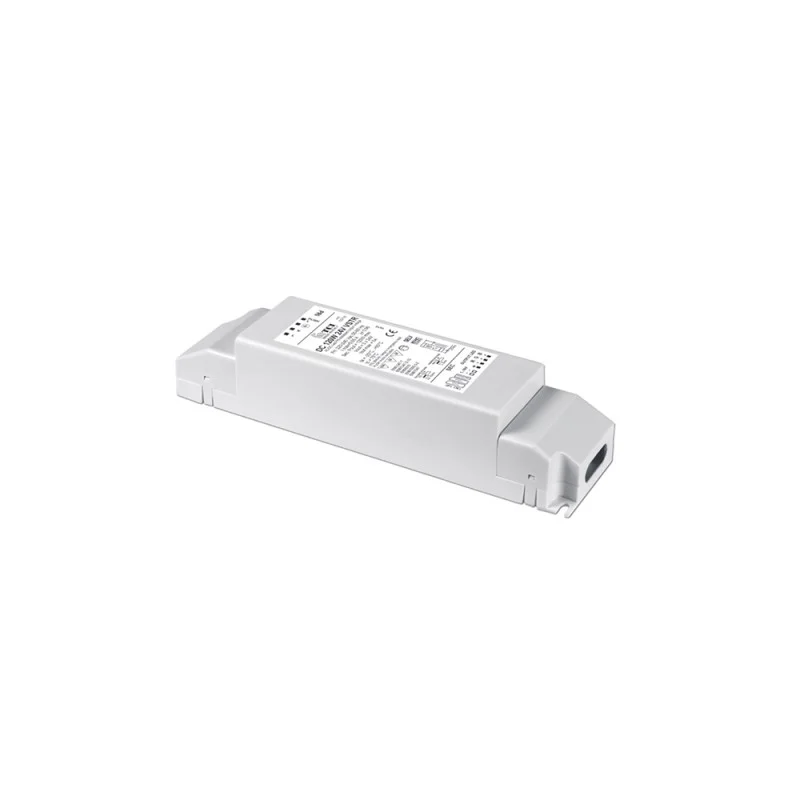

TCI CASAMBI Wireless Dimmable Power Supply Direct Current 120W 24V
  • TCI CASAMBI Wireless Dimmable Power Supply Direct Current 120W 24V
  • TCI CASAMBI Wireless Dimmable Power Supply Direct Current 120W 24V
  • TCI CASAMBI Wireless Dimmable Power Supply Direct Current 120W 24V
  • TCI CASAMBI Multipower Direct Current Dimmable Power Supply
  • TCI CASAMBI Multipower Direct Current Dimmable Power Supply

TCI CASAMBI Wireless Dimmable driver Direct Current 120W

Brand :
CHF185.81 Save 30%
CHF265.45
The product can be ordered

More buy more save

For 5 products spend per unit
For 10 products spend per unit

CASAMBI wireless adjustable direct current electronic ballast 120W Max at 24V, with voltage output for LED modules, three outputs for RGB LED modules with CASAMBI wireless module. Brightness adjustment 0/1 - 100% by PUSH function or compatible devices for integrated CASAMBI WIRELESS module.

Read more ...
local_shipping Shipping time:
Shipped in 7-21 working days
cancel
Availability on order
call_made Click here for availability information

Quantity

Description

Features

Adjustable electronic ballast with voltage output for LED modules, between outputs for LED modules (RGB) with integrated CASAMBI wireless module. IP20 independent power supply, for indoor use. Class I protected against electric shock for direct and indirect contacts. Opposite input and output terminals (cable section up to 2.5 mm² / AWG13).
Protections:
- Thermal and short circuit
- Against network extra-voltages
- Against overloads
- Input protection fuse.
- Thermal protection = C.5.a

Operation Mode

- Brightness adjustment 0/1 - 100% by PUSH function and APP or compatible devices for integrated CASAMBI WIRELESS module.
- 3 different modes selectable via CASAMBI APP:
  • Independent channel mode
  • Tunable White mode
  • RGB mode
- The mode must be selected in the APP before association to a CASAMBI network.
- Dimming 0/1 - 100% using the PUSH function (mains voltage):
  • A short press to turn on and off;
  • A long press to increase or decrease the light intensity;
  • The regulation stops automatically at the minimum and maximum values;
  • For a new on, regulation or off command, release the button and give the desired command again;
  • Restoring the dimming level on power return.

FUNCTIONS

  • Rated voltage: 220÷240V
  • Frequency: 50-60Hz
  • AC operating voltage: 198÷264V
  • Operating voltage DC: 176÷275V (no PUSH mode function)
  • Power: 0÷120W
TCI
cancel
Availability on order

Data sheet :

Reference
127641
Input voltage
220-240 V
Depth in mm
49
Width in mm
60
Length in mm
231
Degree of protection
IP20
Material
Pvc
Light source
LED
Adjustable power
Dimmable
Watt power
120 W
Control system
CASAMBI
Driver power supply
With driver
Download :

attach_file Download
