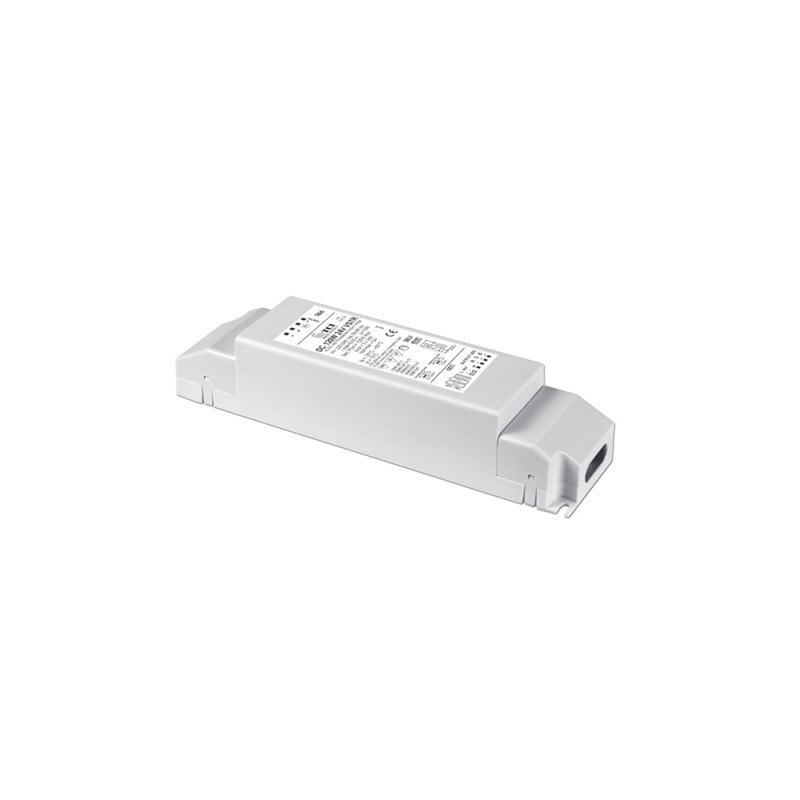

CASAMBI wireless adjustable direct current electronic ballast 120W Max at 24V, with voltage output for LED modules, three outputs for RGB LED modules with CASAMBI wireless module. Brightness adjustment 0/1 - 100% by PUSH function or compatible devices for integrated CASAMBI WIRELESS module.
Adjustable electronic ballast with voltage output for LED modules, between outputs for LED modules (RGB) with integrated CASAMBI wireless module. IP20 independent power supply, for indoor use. Class I protected against electric shock for direct and indirect contacts. Opposite input and output terminals (cable section up to 2.5 mm² / AWG13).
- Thermal and short circuit
- Against network extra-voltages
- Against overloads
- Input protection fuse.
- Thermal protection = C.5.a
- Brightness adjustment 0/1 - 100% by PUSH function and APP or compatible devices for integrated CASAMBI WIRELESS module.
- 3 different modes selectable via CASAMBI APP:
Independent channel mode
Tunable White mode
- The mode must be selected in the APP before association to a CASAMBI network.
- Dimming 0/1 - 100% using the PUSH function (mains voltage):
A short press to turn on and off;
A long press to increase or decrease the light intensity;
The regulation stops automatically at the minimum and maximum values;
For a new on, regulation or off command, release the button and give the desired command again;
Restoring the dimming level on power return.
Rated voltage: 220÷240V
AC operating voltage: 198÷264V
Operating voltage DC: 176÷275V (no PUSH mode function)
