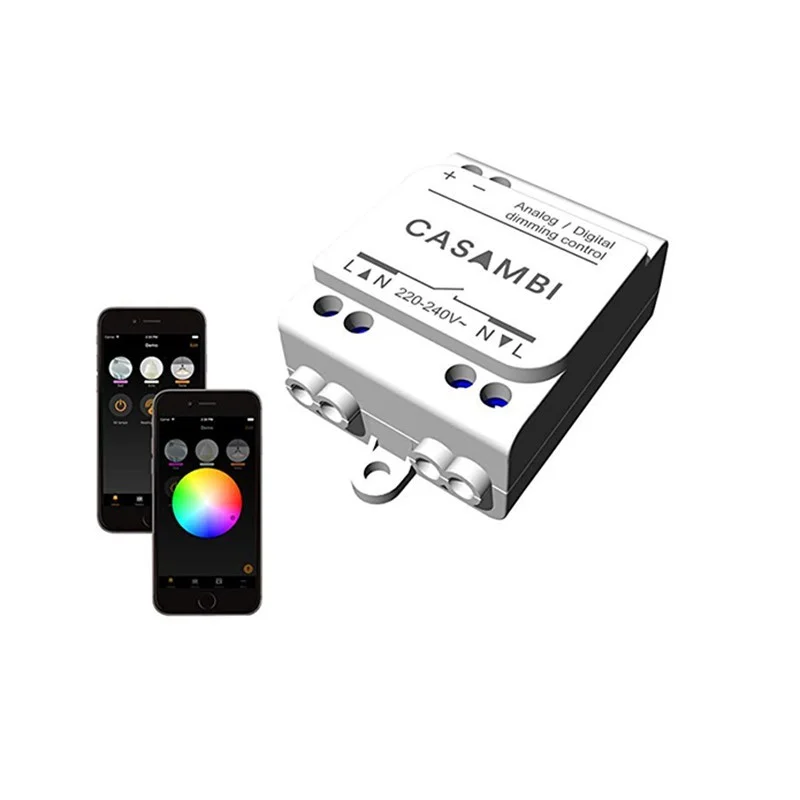

The TCI CBU-ASD is a wireless control unit for LED and halogen drivers with 0-10V, 1-10V or DALI dimming interface. The control output can be configured as an analogue control interface with 0-10V (and 1-10V) or digital driver with DALI Standalone. It can control up to 3 DALI drivers.
When the output is configured as DALI Standalone, the CBU-ASD acts both as a controller and as a power source, allowing direct connection to a LED driver with DALI interface without the aid of an external DALI power supply. The so-called DALI Standalone allows to implement multi-channel lighting systems with color (RGB) or adjustable color temperature, keeping wiring and the number of components to a minimum.
The CBU-ASD does not comply with the IEC 60929 standard and is therefore not designed to be connected to an existing DALI network. The module can only be used in a closed system, ie as part of a lighting system not connected to an external DALI network.
No external gateway required
Automatically create a fast wireless mesh network
Very small format for installation on lighting devices
Configurable analogue / digital output
Analog output: 0-10V sink / source
Digital output: DALI Standalone
Easy RGB management and color temperature
Controllable switched network output
Single control of 2, 3 and 4 channels
Dimming from standard on / off wall switches
The device's firmware can be updated over the air
The Casambi cloud service improves the user experience
Input voltage: 220 - 240 Vac
Energy consumption: 1.1 W PF 0.6
Output current max 0.6 A ca
Max DALI driver number 2
Num max driver 1-10V 2
Flos code: 60.9392
The CBU-ASD measures 56.5 x 35.8 x 22.3 mm, is IP20 and operates at an ambient temperature between -20 and +40 ° C (if the output current is 0.6 A) and between -20 and +50 ° C (if the output current is 0 A). It is important that the ambient temperature does not exceed the specified maximum value. A rigid or flexible 0.75-1.5 mm2 electric cable can be used for the installation.
Casambi is an advanced lighting control system based on Bluetooth Low Energy (BLE) technology. BLE is a cutting-edge wireless technology, the only one with low energy consumption, integrated in all modern smartphones, tablets and smart watches, and the only one in the world ready for the challenges of the future.
Intelligent Casambi devices have their own intelligence. Intelligence is replicated in each node so that at no point in the path are there any possibility of errors occurring. The system itself is in constant synchronization based on consensus. 1.2 Connected Casambi devices connect when necessary. An Internet connection is not required for general operation and ordinary functionality. Bluetooth Low Energy technology is already implemented in smartphones and tablets, so connections can be established without additional gateways. The connection speed between a smart device and Casambi devices is fast and uninterrupted, just open the App to start the connection to the system.
Intuitive This system is intuitive: at the first connection the nodes are automatically associated and can be used and customized by anyone, without the need to involve experts for commissioning.
Wireless The Casambi network is based on the Bluetooth Low Energy protocol, the best high energy efficiency wireless technology ready for the challenges of the future. 2. Bluetooth Low Energy The Bluetooth Low Energy, also known as Bluetooth 4.0+, Bluetooth Smart or simply BLE, was originally designed by Nokia as Wibree and then adopted by the Bluetooth Special Interest Group (SIG) and released in 2010. The low power consumption feature of the BLE allows developers to build products powered by small button batteries or energy storage devices, making the BLE the best protocol to use in wireless lighting control applications.
