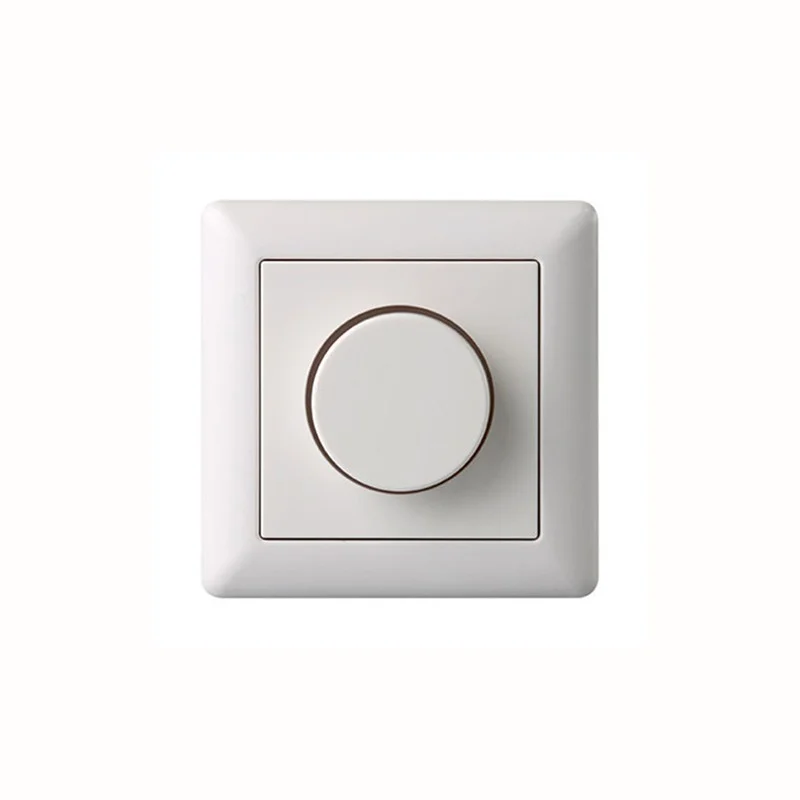

Rotary Dimmer Knob Zigbee 3.0 Intelligent

Product Information:

Intelligent Rotary knob smart Dimmer interface with the latest generation Zigbee 3.0 protocol with a wide input voltage 100-240V for the management of the trailing edge signal (phase cut). It allows you to control the ignition and the intensity of the light. Application on the phone of Philips Hue APP. With the Hue system, voice control can be managed by Amazon Alexa, Google Assistant.

It manages dimmable LED bulbs, fluorescent bulbs, all halogen and incandescent bulbs, low voltage halogen bulbs with transformer. Product leaflet with programming changes inside the product.

Features:
Input Voltage: 100-240VAC
Output Voltage: 100-240VAC
Output Current: 2.8A max
Size(LxWxH): 83.8x83.8x52.4mm

As a dimmer it operates under the following loads:
. Conventional incandescent and HV halogen light sources
. ELV halogen lamps and dimmable LED bulbs (with electronic transformers)
. MLV halogen lamps (with ferromagnetic transformers)
. Dimmable LED bulbs
. Dimmable compact fluorescent CFL tube lamps
. Supported dimmable light sources (power factor > 0.5) with minimal power of 3VA using the Bypass (depending on the type of load)

Characteristics:
. ZigBee knob smart dimmer based on latest ZigBee 3.0 protocol
. 100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
. Supports resistive loads, capacitive loads or inductive loads
. 1 channel output, up to 600W
. Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
. Enables to control ON/OFF and light intensity of connected light source
. ZigBee end device that supports Touchlink commissioning
. Can be controlled by zigbee gateway, zigbee remote and local rotary knob
. Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
. Supports self-forming zigbee network without coordinator and add other devices to the network
. Supports find and bind mode to bind a ZigBee remote
. Supports zigbee green power and can bind max. 20 zigbee green power remotes
. Compatible with universal ZigBee gateway products
. Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
. Radio Frequency : 2.4GHz

Main Features:
. Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
. Advanced microprocessor control
. Implemented algorithm of smart light source detection
. Active power and energy metering functionality
. Soft start function
. Innovative minimum dimming level and startup brightness setting functions
. The Bypass is an extension unit

Safety & Warnings
. DO NOT install with power applied to device.
. DO NOT expose the device to moisture.
