Salve, volevo chiedere, quando alimentato, il circuito è aperto o chiuso? Grazie e a presto

Salve , quando è alimentato , si chiude solo all' attivazione del sensore pir . Diffusione Luce srl

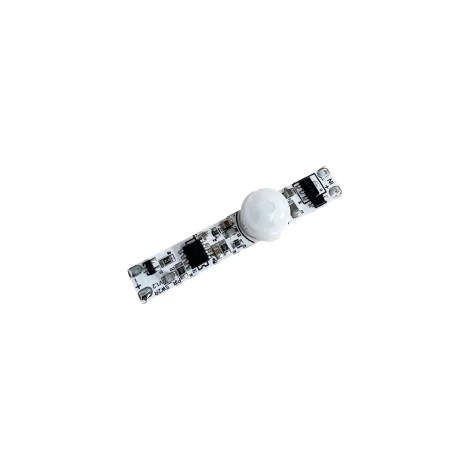

QLT PIR Motion Sensor for Strip LED in Aluminum Profiles

QLT PIR Motion Sensor for Strip LED in Aluminum Profiles

lei97.66

More buy more save

For 5 products spend per unit

For 10 products spend per unit

For 20 products spend per unit

Presence and movement PIR sensor to be connected to 12V and 24Volt LED strips. Ideal to be applied inside aluminum profiles. It manages up to a maximum of 144W at 24V and 72W at at 12V.

Product Information:

PIR motion detector for profiles (to be built in)

Features:

PIR motion detector for Strip Led aluminum profiles
Detects movement at 3mt 110°
Modular lens for fixing on flat profiles
40 seconds timer
Operation in constant voltage 12V / 24V max 6A
Mounting with isolated bi-adhesive (min. 1mm) on aluminum
Soldering pads
Output MAX @ 24V: 6A 144W
Output MAX @ 12V: 6A 72W

file_present Datasheet

100% original product by

Details:

Data sheet

Barcode:: 8058774344822
Reference: A40PIRSW0010
Input voltage: 12-24 V DC
Output voltage: 12 / 24V DC
Depth in mm: 12
Width in mm: 10
Length in mm: 55
Degree of protection: IP20
With switch: Motion sensor
Variant: PIR
Current carrying capacity: 6A
Insulation class: Insulation class III
Compatible voltage: EU-AUD-USA-UK-JAP
