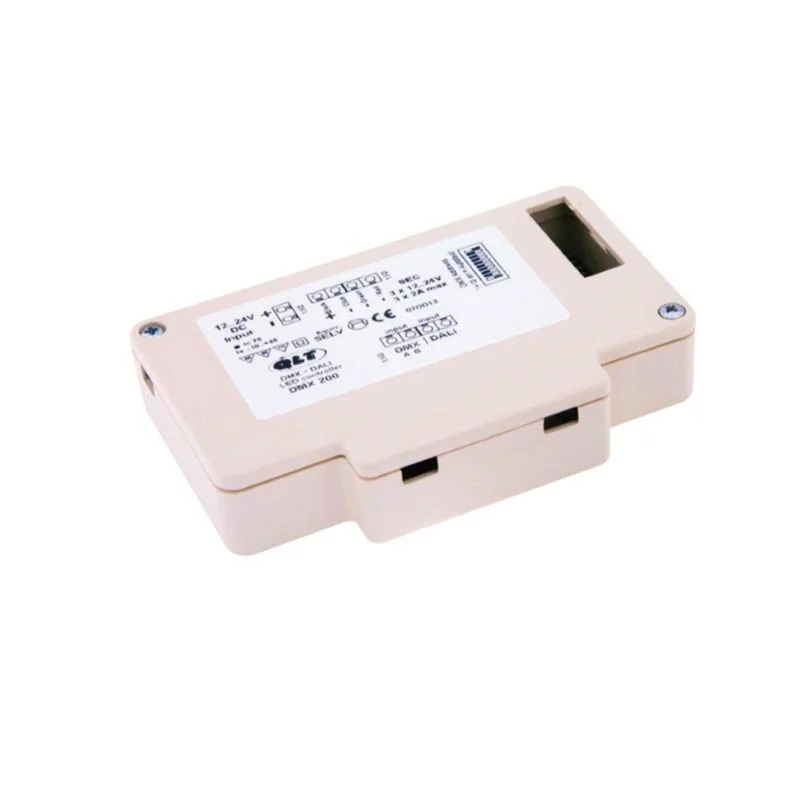

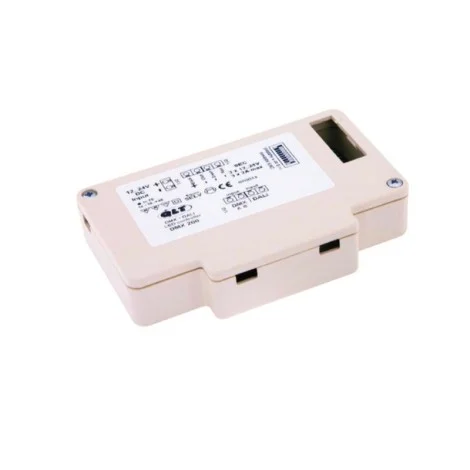

Qlt converter DMX-DALI to PWM for 12/24V systems

The QLT DMX-DALI to PWM converter is a protocol conversion device designed to integrate DMX512 and DALI control systems with low-voltage LED strips and light sources. Built in PVC with compact dimensions of 110 × 70 × 23 mm, it converts DMX512 or DALI signals into PWM RGB outputs for independent chromatic control across Red, Green and Blue channels, making it essential in any dynamic and professional LED lighting installation.

The unit operates at an input and output voltage of 12–24V DC, ensuring full compatibility with major international electrical standards including EU, USA, UK, Australia and Japan. It features separate inputs for DALI and DMX protocols, with integrated DIP switches for DMX address selection and an internal status LED for immediate operational monitoring. The maximum output current is 6A in total, with up to 2A per channel, ensuring stable and reliable long-term performance. The IP20 protection rating and insulation class III define its use in dry indoor environments. A separate 12–24V external power supply is required for operation.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
