Meanwell Power Supply LRS-150-24 156W 24V 6.5A AC/DC LED
  • Meanwell Power Supply LRS-150-24 156W 24V 6.5A AC/DC LED
Meanwell Power Supply LRS-150-24 156W 24V 6.5A AC/DC LED

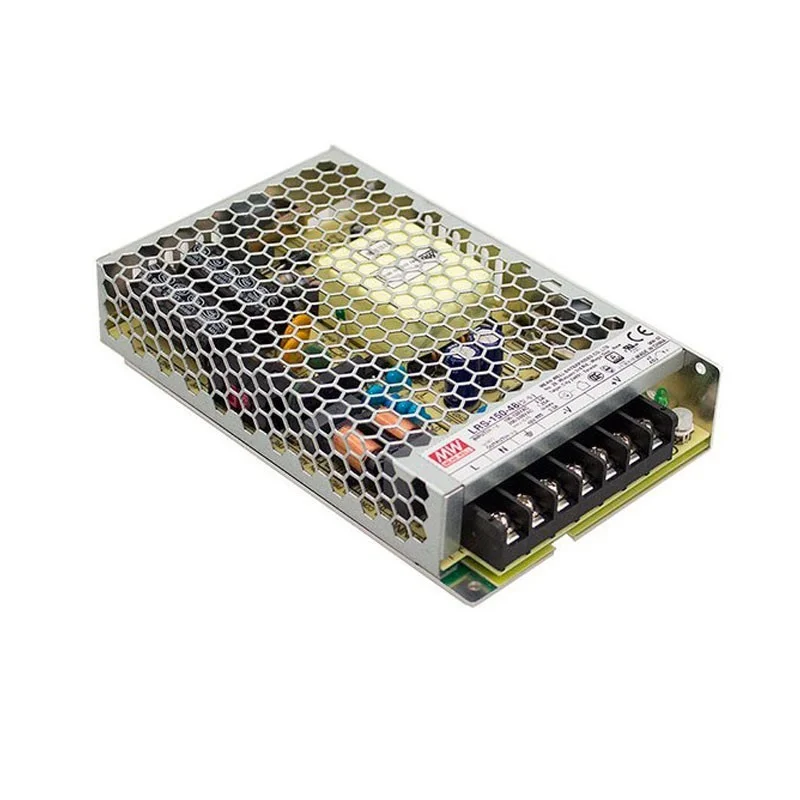

Meanwell Power Supply LRS-150-24 156W 24V 6.5A AC/DC LED Constant Voltage Driver

LRS-150-24

$21.87
24 / 48 hours

More buy more save :

If you buy 5 products the price is
If you buy 10 products the price is
If you buy 15 products the price is

Switching power supply LRS 150 24 with output voltage: 24V DC, adjustable between 21.6 and 28.8V DC. Output current: 6.5A. Maximum output power: 156W.

Quantity
Shipped in 1/2 days
36 Items

Description
Product Information:

The LRS 150W 24 Volt power supply unit offers high efficiency, long life and high reliability. Small size and high power density. Operating temperature up to 70 ° C. Easy installation with screw terminals. 24V output voltage adjustable from -5% to + 10%. Output power 156 Watts. Dual outputs have a minimum load required, see output current data (in data sheet). The total load must not exceed the rated output power. Harmonic distortions in accordance with EN 61000-3-2 EMC conforming to EN 55022, Class B. Overvoltage, overload and short circuit protection.

Switching power supply LRS 150 24 with output voltage: 24V DC, adjustable between 21.6 and 28.8V DC. Output current: 6.5A. Maximum output power: 156W.

The LRS 150W 24 Volt power supply unit offers high efficiency, long life and high reliability. Small size and high power density. Operating temperature up to 70 ° C. Easy installation with screw terminals. 24V output voltage adjustable from -5% to + 10%. Output power 156 Watts. Dual outputs have a minimum load required, see output current data (in data sheet). The total load must not exceed the rated output power. Harmonic distortions in accordance with EN 61000-3-2 EMC conforming to EN 55022, Class B. Overvoltage, overload and short circuit protection.

Product Details
36 Items

Data sheet

Barcode:
8058774344419
Reference
LRS-150-24
Input voltage
100-240 V
Output voltage
24 VOLT DC
Depth in mm
30
Width in mm
97
Length in mm
159
Degree of protection
IP20
Material
Aluminum
Variant
LRS-150
Current carrying capacity
6A
Power output in watts
150 w
Efficiency %
89
USA JAP compatible
Compatible
