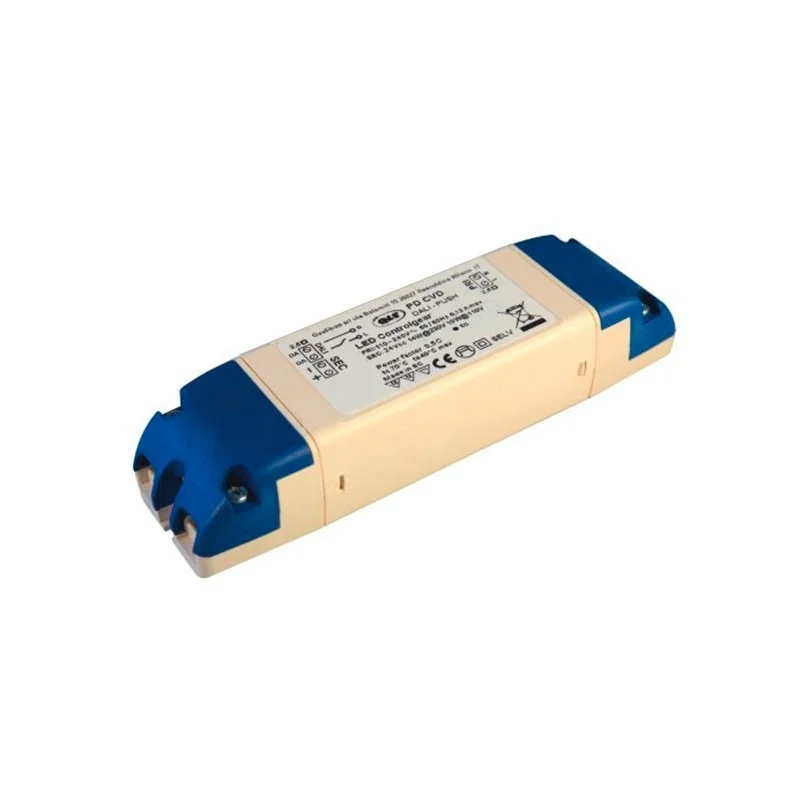

QLT 24V LED Constant Voltage Driver Dimmable 1-10V With Low Voltage Button

The QLT A40PDCV1000B is a 24V DC constant voltage LED driver designed to deliver stable, reliable power to LED strips and LED modules. Built in PVC with a highly compact profile — 138 mm in length, 40 mm in width and 18.5 mm in depth — it features an integrated 1-10V dimming function controlled via a simple NA (Normally Open) push button, making light intensity adjustment straightforward and accessible without the need for complex control systems.

This dimmable LED power supply is particularly well suited to residential and professional installations where flexible lighting control is required. Compatible with input voltages from 100 V to 240 V AC — supporting EU, USA, UK, AUS and JAP standards — it provides a stabilised 24V DC output with a maximum power of 13W at 230V and 10W at 110V. Insulation class II and an IP20 protection rating make it suitable exclusively for dry indoor use. Self-resetting protection against overtemperature, open circuit and secondary short circuits ensures long-term safety and operational continuity. Independent mounting allows easy integration into suspended ceilings, aluminium profiles and custom lighting systems.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
