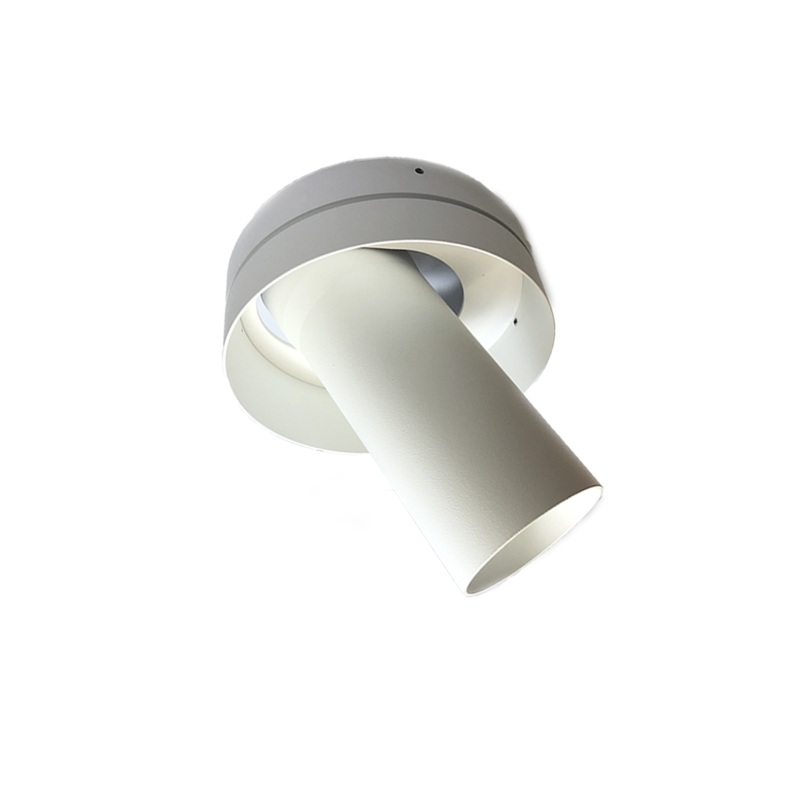

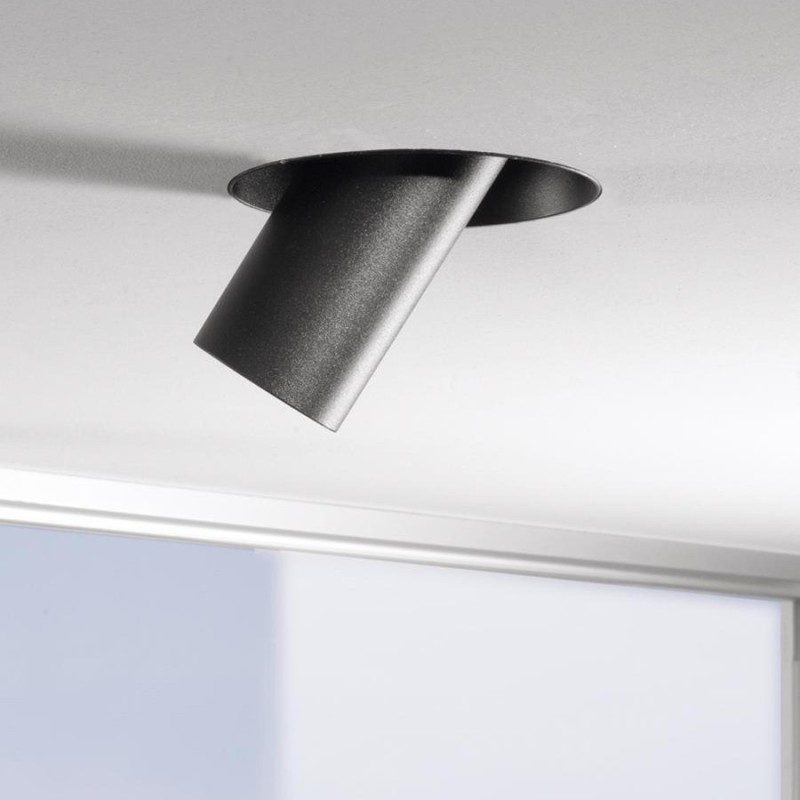

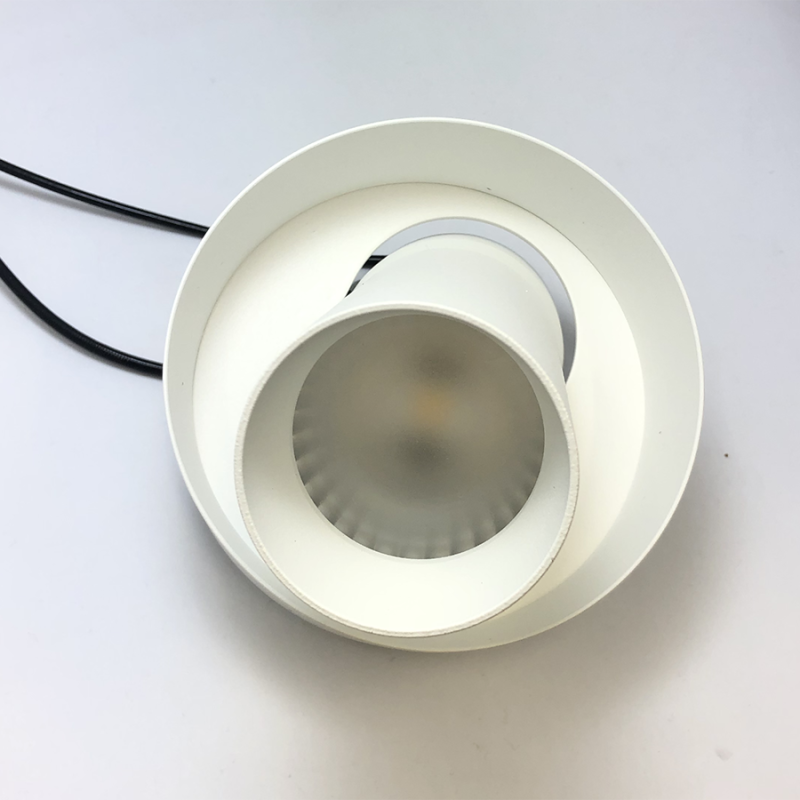

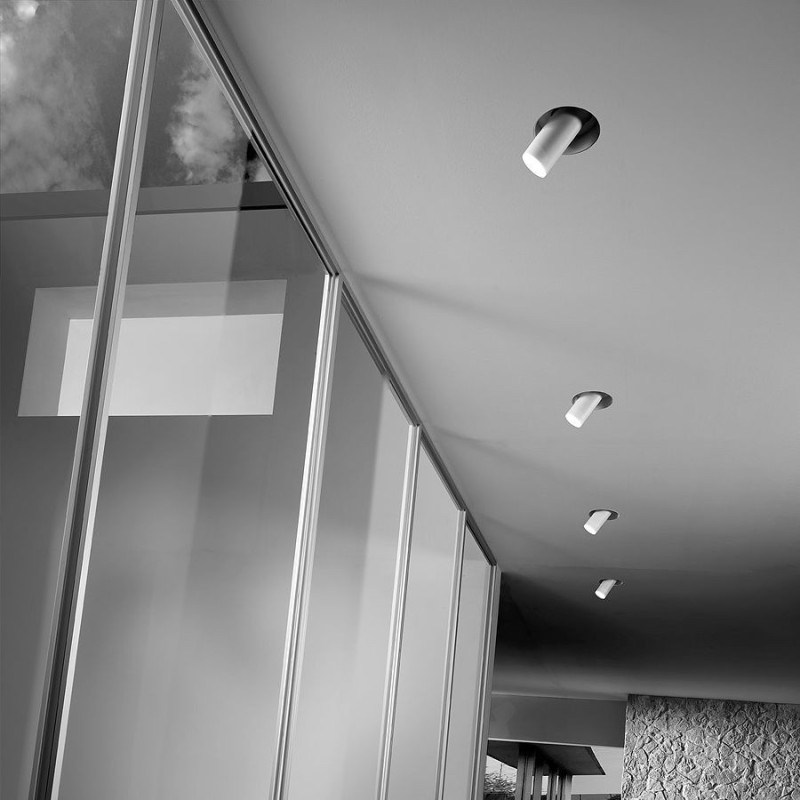

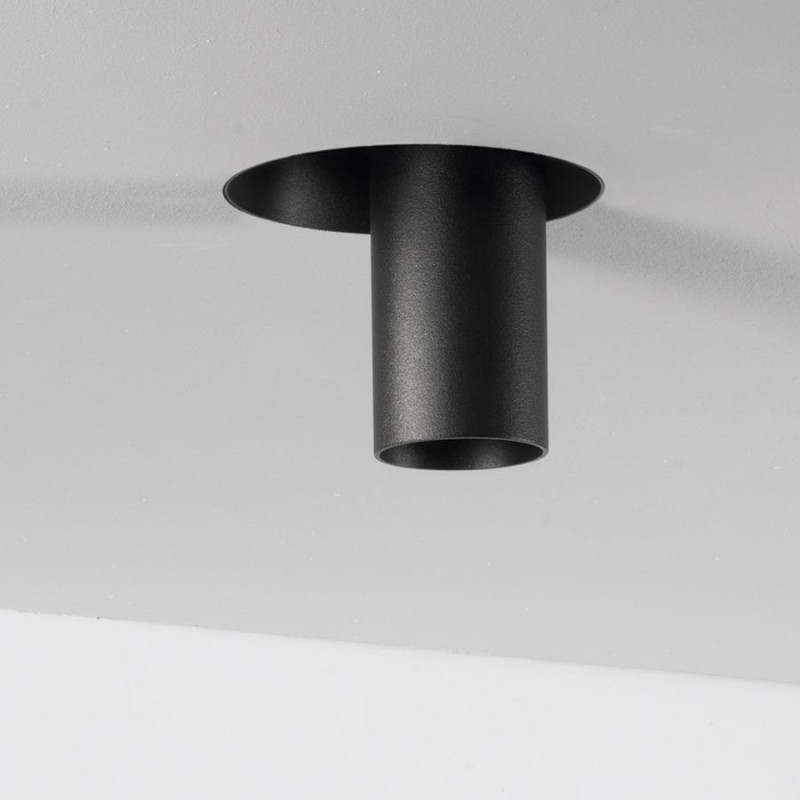

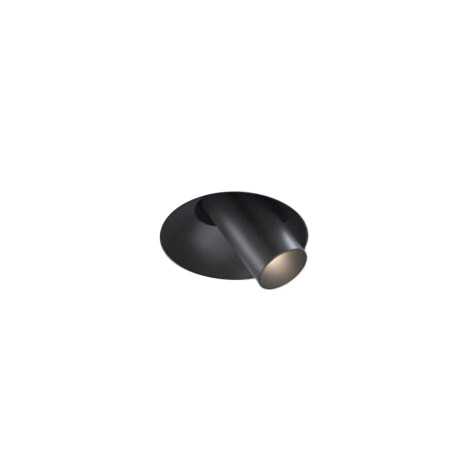

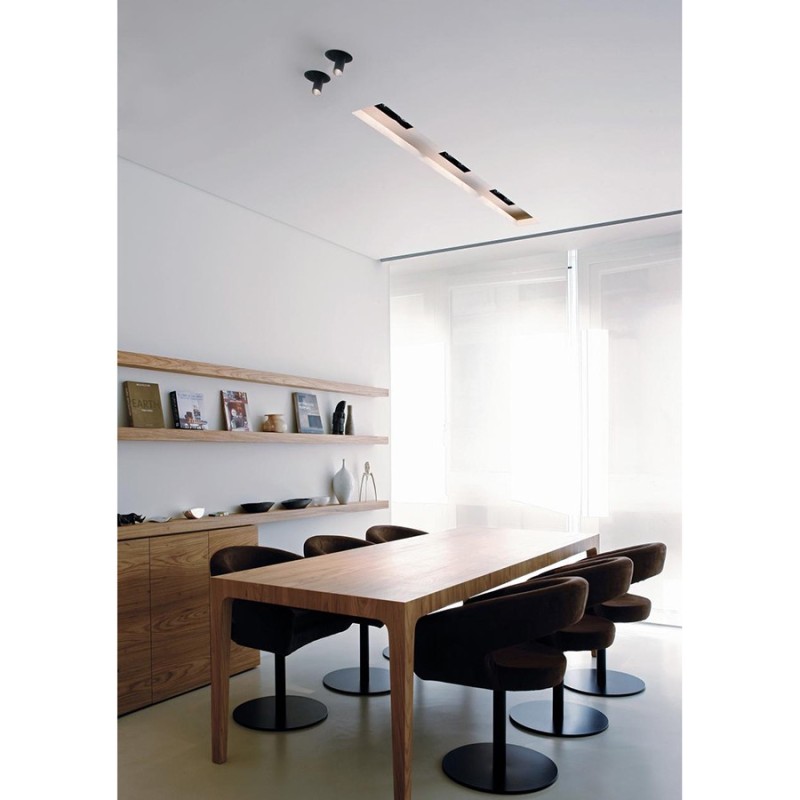

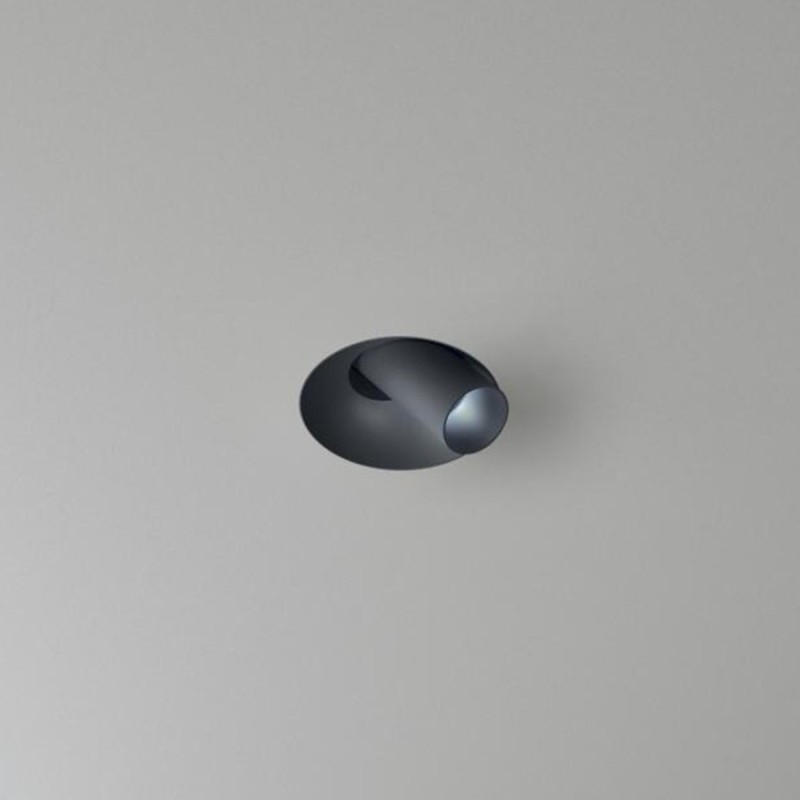

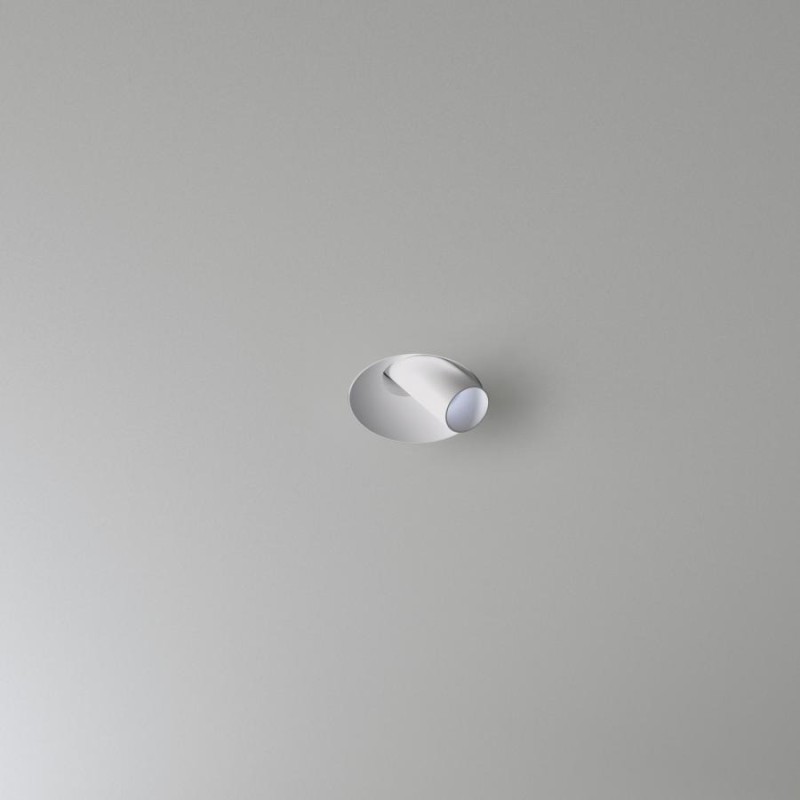

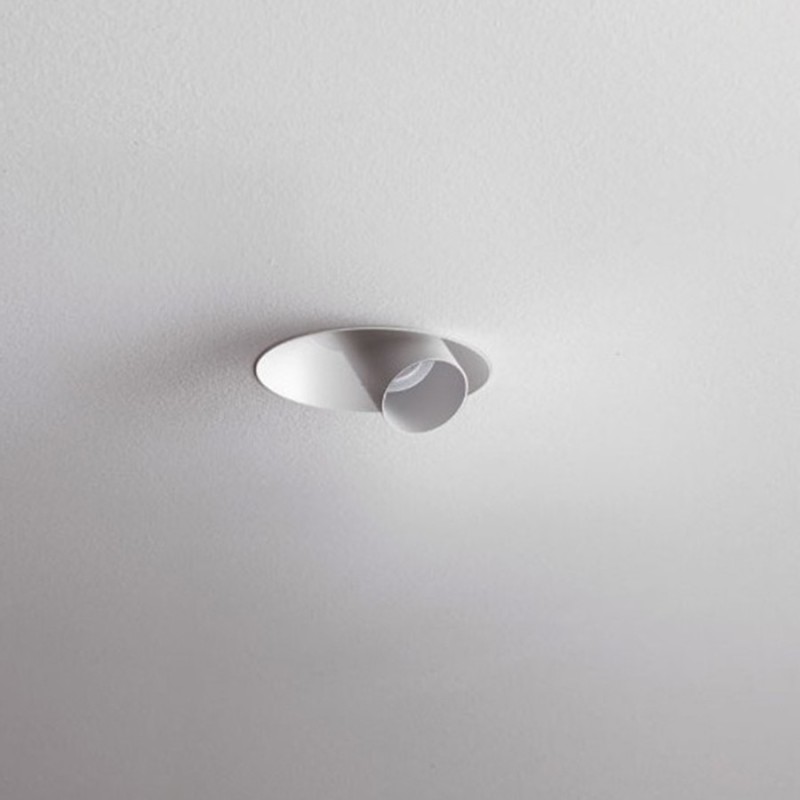

Architectural recessed luminaire for interiors without frame, adjustable 360 ° on the horizontal axis and 43° on the vertical axis, equipped with LED optical body available in three different opening beams, narrow 12°, medium 22° and 38° degrees wide. The article has been designed to be easily installed in the formwork with the "UP AND CLICK" system (without the support of any tools). The minimalist design makes it suitable for the lighting of private environments, and for the contract market: offices, shops, restaurants, hotels. Possibility to apply 350mA ON-OFF drivers, or with DALI, PUSH, 1-10V or IGBT-TRIAC dimmable function, which you can find in our on-line shop. Formwork available in Single (cod.1Z00.120.01), double (cod.1Z00.120.2L) and triple (cod.1Z00.120.3L) for plasterboard. Single for Housing for brickwork (code 1M00.120.01). IP40 waterproof rating.
11W LED available in three different shades of light, 2700K (1195lm) very warm light, 3000K (1257lm) warm light and 4000K (1313lm) neutral light. Driver not included. Possibility to adjust the light intensity. Opening beam selectable.
The FORMWORK is required for installation, not included but sold separately (see accessories).

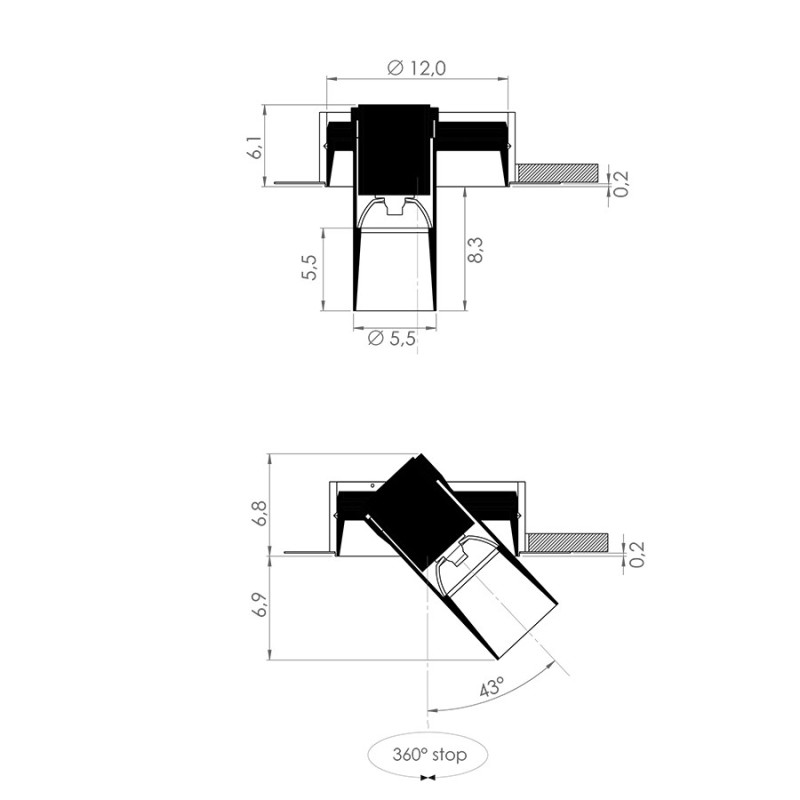

Recessed formwork Housing for plasterboard for recessed spotlight, totally concealed Trimless, designed by Harbor design, model POP P04 D. 2 with an 12 cm recessed hole. The dimensions can be found in the product images.
