Osram QTP5 2x54W 220/240V Quicktronic Professinal Ballast

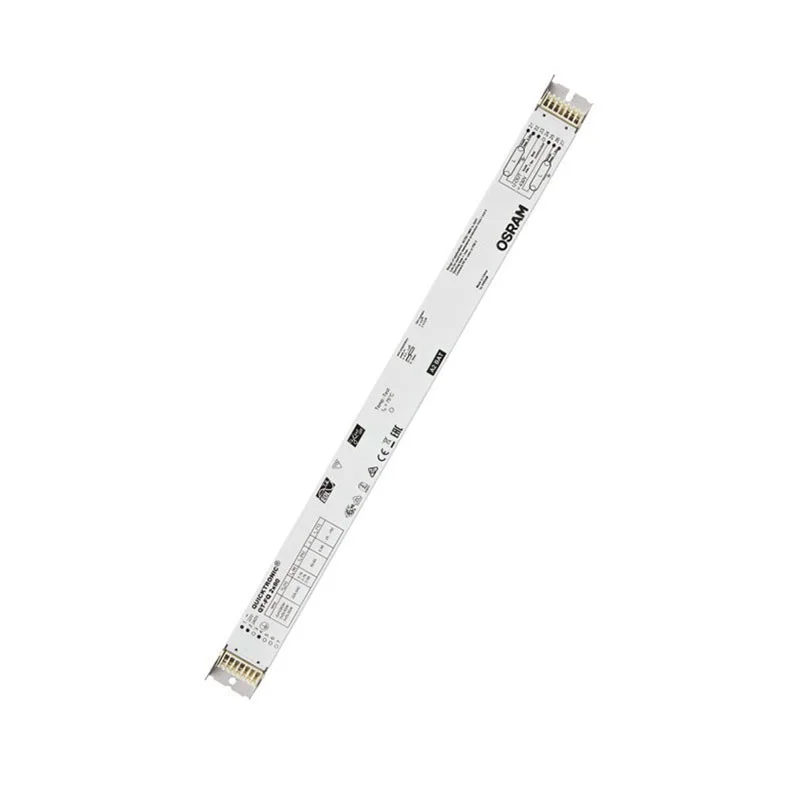

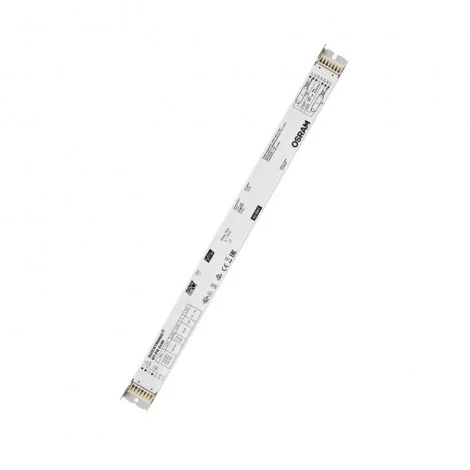

Osram QTP5 2x54W Quicktronic Professional is a dimmable electronic ballast manufactured by Osram, designed to drive T5 fluorescent neon discharge lamps in a 2x54W dual-lamp configuration. Built in steel with compact dimensions of 423x30x21 mm and a protection rating of IP20, it is suited for installation in protected indoor environments. The electronic system delivers constant light output across a line voltage range of 198 V to 264 V, with an input voltage of 220-240 V.

This professional ballast is distinguished by an operational lifetime of 50,000 hours, with preheat start within 1 second and reliable lamp ignition across a temperature range from -20 °C to +50 °C. Cut-Off technology ensures automatic safety shutdown at end of lamp life or in the event of a failure, while automatic re-ignition occurs after lamp replacement. Compatible with luminaires of protection class I and II, it is also suitable for emergency lighting in DC operation and carries an energy efficiency index rated EEI A2. Recommended for installations in offices, public buildings, corridors and strip lighting applications.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
