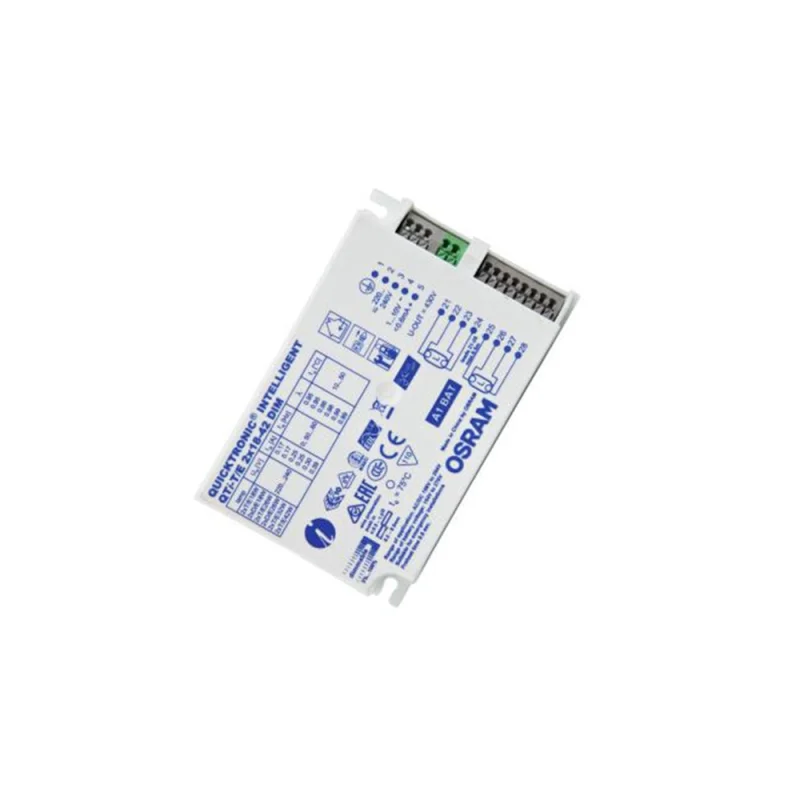

Osram QTI 2x18-42 dim Quicktronic intelligent ballast 1/10V T/E

Areas of application
Suitable for use in emergency lighting systems as per EN
50172/DIN VDE 0108-100
Installation in emergency lighting systems according to
IEC 61347-2-13, appendix J
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Sports halls and factories
Strip lighting
Shop lighting

Product benefits
System+ Guarantee available
Easy integration in luminaire thanks to same dimensions like 1/10V GI ECG
Touch DIM function for easy and inexpensive dimming of several ECGs
Same luminous flux with direct and alternating current
Dimming of amalgam lamps without flickering or reduced lifespan
Automatic restart after lamp replacement
No new approvals required
Control via the 1/10V interface
Compliance with the 1/10V standard to IEC 60929 and IEC 62386
Control input protected against overvoltage and polarity reversal (OSRAM ECG)
Touch DIM and Touch DIM Sensor function
Manual dimming without controller and with standard switches
Including memory function (double click) and soft start

• 2 x 18/42 w dali
• Input voltage AC 198-264 V
• Nominal voltage 220-240 V
• Mains frequency 50-60 Hz
• Input voltage DC 154-276 V
• Operating frequency 44-120 kHz
