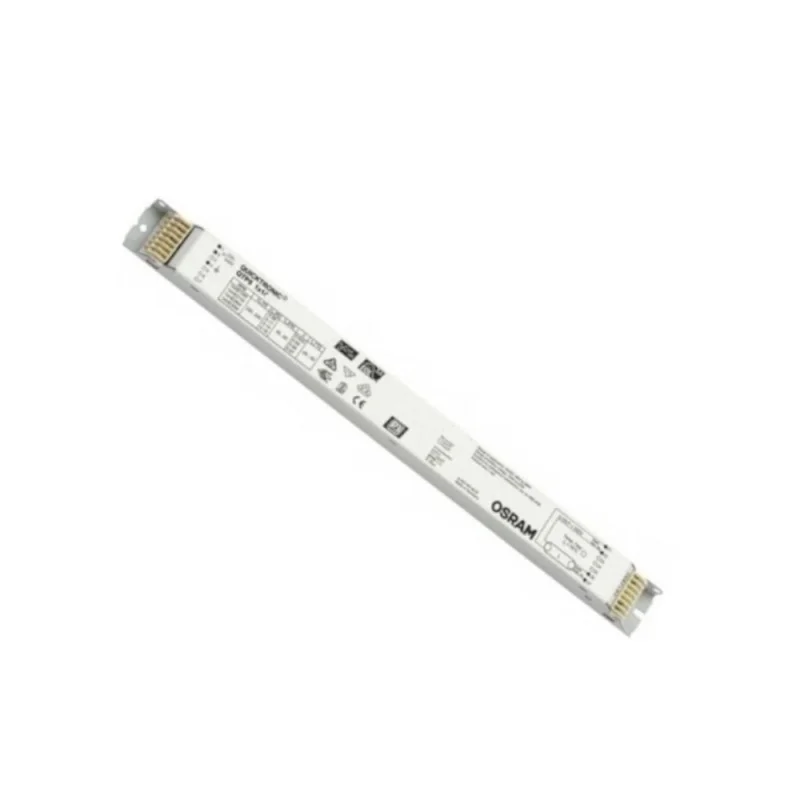

Osram QT-FQ 1X24/39w F/CW electronic ballast dimmable

The Osram QT-FQ 1X24/39 F/CW electronic ballast is a professional control gear manufactured by Osram, designed to drive a single FQ fluorescent tube at 24 W or 39 W. Built in metal, it combines durability with reliable performance in fixed installations, featuring compact dimensions of 360 × 30 × 21 mm and a fixing length of 350 mm for straightforward integration into ceiling luminaires and professional light fittings.

This dimmable electronic ballast is particularly suited to technical installations requiring precise light-level control: the phase-cut dimming system enables smooth and continuous adjustment of light output to meet varying illumination requirements. The input voltage range of 220–240 V ensures full compatibility with standard European electrical supplies. Its energy efficiency class A2 keeps energy consumption to a minimum, while an estimated service life of up to 50,000 hours makes it a dependable long-term solution. The IP20 protection rating confirms suitability for dry indoor environments, and the compatible light source is a neon discharge lamp, typical of high-efficiency linear fluorescent tubes.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
