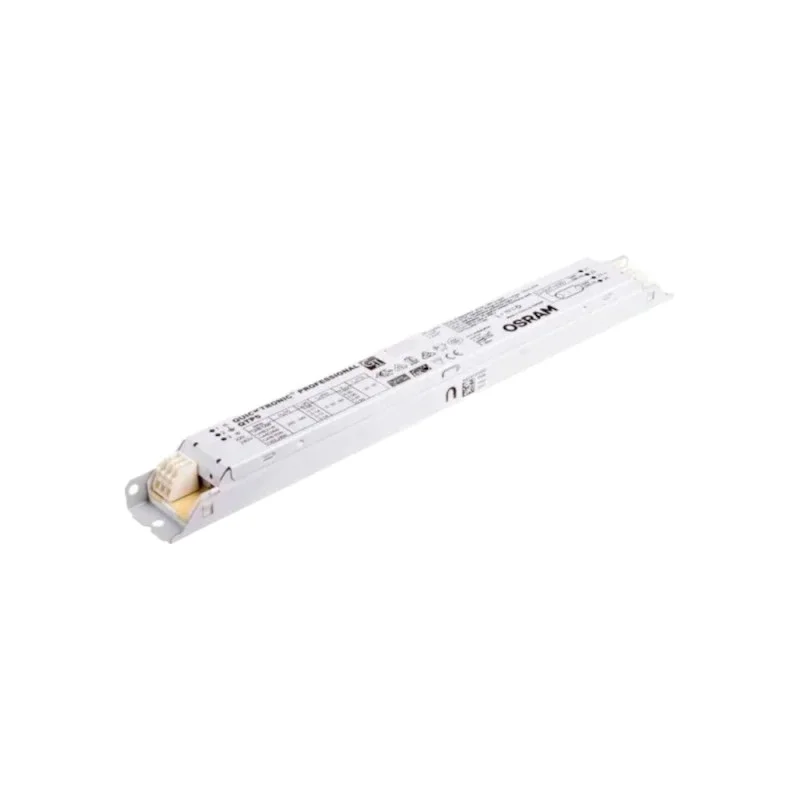

Osram Electronic ballast QTP5 1X54w dimmable

The Osram QTP5 1X54W is a dimmable electronic ballast designed to drive a single neon discharge fluorescent tube rated at 54W, compatible with HO lamp types. Built with a metal body, it features a compact profile measuring 280×30×21 mm with a fixing length of 270 mm, engineered for precise integration into ceiling luminaires and technical lighting fixtures.

This electronic control gear operates at an input voltage of 220–240 V and supports phase-cut dimming, enabling smooth and accurate control of light output. The energy efficiency class A2 ensures high performance with reduced energy consumption, while an estimated service life of up to 50,000 hours makes it a reliable long-term component. The IP20 protection rating confirms its suitability for indoor installations in protected environments. Thanks to its compatibility with phase-cut dimmer systems, the QTP5 1X54W delivers flexible luminous flux management for both professional and residential applications requiring precise lighting control.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
