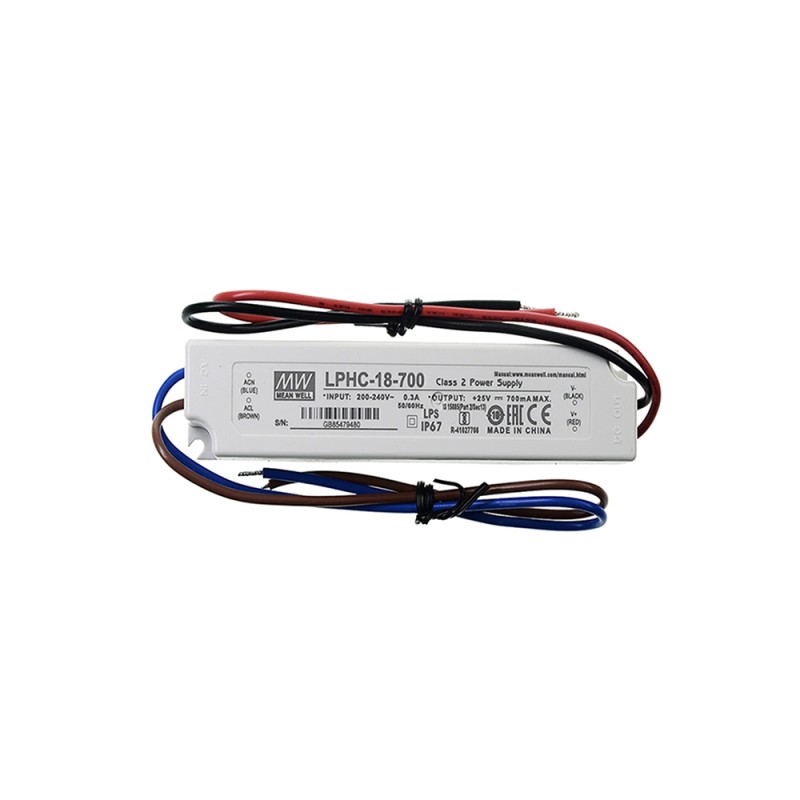

Meanwell Power Supply LPHC-18-700 18W IP67 700mA LED Constant Current Driver
    • Meanwell Power Supply LPHC-18-700 18W IP67 700mA LED Constant Current Driver

    Meanwell Power Supply LPHC-18-700 18W IP67 700mA

    Brand :
    £10.55

    More buy more save

    For 10 products spend per unit

    LPHC-18 ip67 power supply with 700mA constant output current, direct output voltage between 6 and 25V. 17.5W output power.

    Read more ...
    local_shipping Shipping time:
    local_shipping Not available
    call_made Click here for availability information

    Quantity

    Description

    LPHC-18-700 switching encapsulated external power supply, IP67 grade, high efficiency, long life and high reliability, 700Ma output . Suitable for LED lighting and moving sign applications. Burn-in test at full load 100%. Fully regulated output. Short circuit, overload, over voltage and over temperature. Input Cable 300mm bipolar finished 18 AWG. output cable 300mm finished, bipolar 18 AWG UL1310 Class 2 power unit, passes LPS. EMC compliance to EN 55022 Class B Harmonic current compliance to EN 61000-3-2.

    Mean Well
    cancel
    Availability on order

    Data sheet :

    Barcode
    8058774341678
    Reference
    LPHC-18-700
    Input voltage
    100-240 V
    Output voltage
    6-25V
    Depth in mm
    22
    Width in mm
    30
    Length in mm
    140
    Degree of protection
    IP67
    Material
    Polycarbonate
    Adjustable power
    Not dimmable
    Variant
    LPHC-18-700
    Constant current output
    700mA
    Power output in watts
    18 w
    Insulation class
    Insulation class II
    Efficiency %
    80
