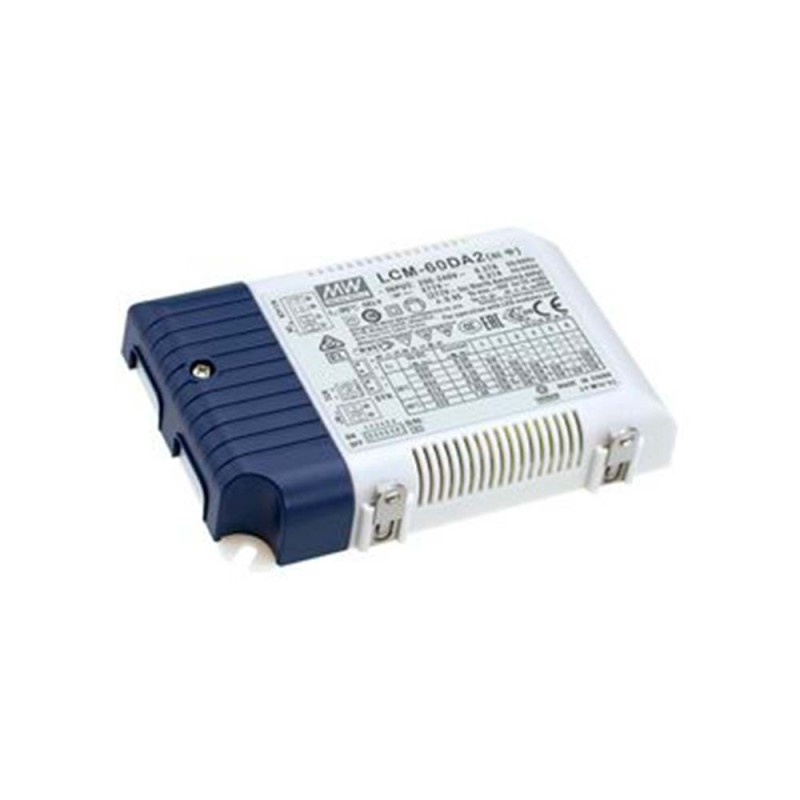

Mean well LED Driver LCM-60DA2 60W 500-1400mA DALI 2 Dimmable

The Mean Well LCM-60DA2 is a 60W constant current LED driver featuring DALI 2 dimming control, designed for precise and reliable regulation in professional lighting installations. The output current is selectable via an on-board dip-switch within the range of 500~1400mA, with an output voltage adjustable between 2 and 90V DC depending on the connected load. The compact ABS housing, measuring 123 x 81 x 23 mm, operates without a cooling fan, ensuring silent and maintenance-free performance.

Thanks to full compatibility with the DALI 2 protocol, this LED driver integrates seamlessly with DALI buses and control units, making the Mean Well LCM-60DA2 the ideal solution for smart lighting in commercial, retail and architectural environments. It also supports push button dimming and allows multiple units to be synchronised via the sync terminal. The driver operates with an input voltage between 180 and 254V AC, ensuring compatibility with EU, USA, UK, Australian and Japanese mains, with a maximum output power of 60W and a declared efficiency of 91%. Rated Insulation Class II and carrying an IP20 protection rating, it is suitable for installation in protected indoor environments, making it the preferred choice for constant current LED systems in commercial, museum, hospitality and architectural projects requiring accurate DALI 2 dimming and centralised light circuit management.
