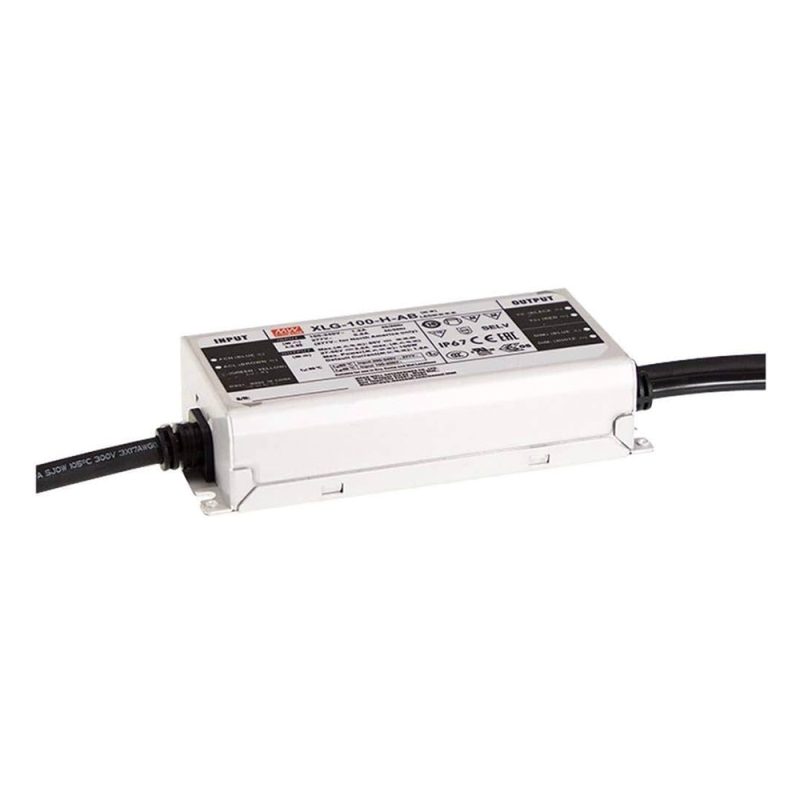

Mean well driver XLG-100-H-AB 100W 875-2780mA IP67 Constant Current

The Mean Well XLG-100-H-AB is a 100W LED driver featuring constant current output adjustable from 875mA to 2780mA, designed to deliver reliable and stable power to professional LED lighting systems. With a universal input voltage from 100 to 240V AC and an efficiency of up to 92%, it stands as a benchmark solution for demanding lighting applications.

The IP67 protection rating and fully insulated metal housing make this driver suitable for both indoor installations and outdoor use, offering full resistance to dust, moisture and harsh environments. The 3-in-1 dimmable function — compatible with potentiometer, 0-10V and PWM — ensures maximum control flexibility across every application scenario.

The driver operates in constant current mode with a 100W output power and compact dimensions of 140 x 63 x 32 mm. The fanless design with free air convection cooling allows operation between -40°C and +90°C. Insulation Class II ensures maximum electrical safety for the entire installation.

The Mean Well XLG-100-H-AB includes built-in protection against short circuit and over-voltage, with resistance to overvoltage input up to 300VAC. It complies with international standards IEC61347, GB19510.1 and UL8750, with fully isolated output and dimming circuitry. A 5-year warranty confirms the product's long-term reliability.

Ideal for indoor and outdoor LED luminaires, architectural lighting, retail environments, commercial spaces and industrial installations requiring a compact, high-performance driver certified for use in demanding conditions.
