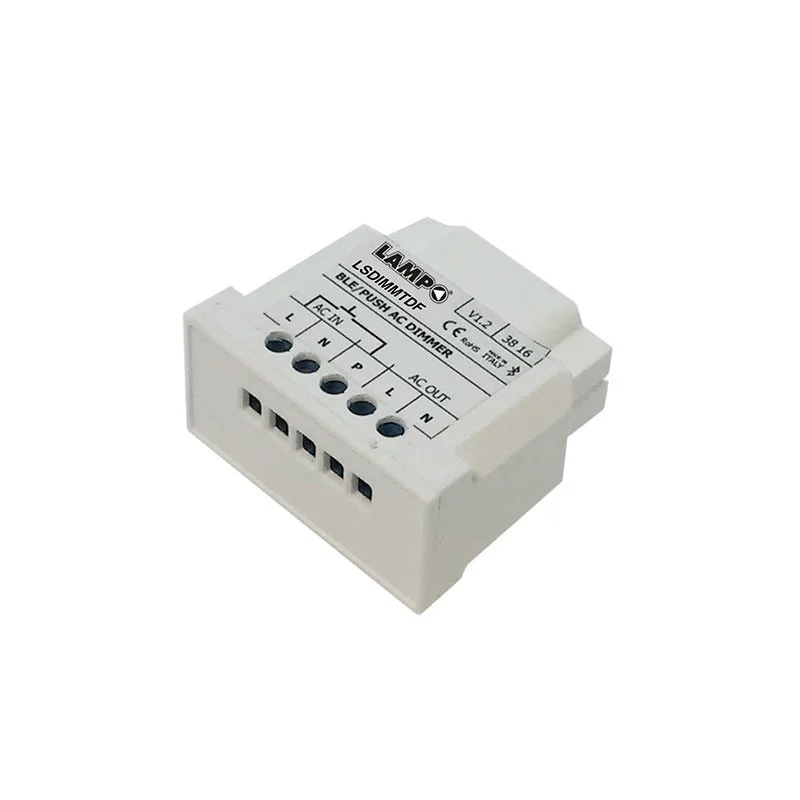

Lampo Mono Channel Bluetooth Dimmer with Phase Cut Output for Android and iOS

Product Information:

• Control of dimmable light sources 100-240V.
• Open circuit protection
• Voltage surge protection
• Over current protection
• Thermal protection
• Control via isolated button, Tuya APPcloud or Smart Life, support on / off, brightness adjustment, timer, scene and music playback function.
• Voice control, amazon ECHO support and Google assistant
• When turned off, it memorizes the last setting.

In order to activate this control / operation mode, it is necessary to install the Newlab Go app on the Android or iOS device that you want to use for controlling the LSDIMMTDF dimmer. The implemented features are:

- Switch on, switch off and control of the brightness level of each single light point.
- Possibility of grouping and controlling several light points together with a simple command.
- Creation and recall of favorite lighting scenarios.
- System management from a single simplified user interface.

Once a normally open button is connected as shown in FIG. 1, it is possible to dim the load (incandescent lamps, LED devices and phase cut dimmable power supplies) according to the following procedure.

PUSH interface operation

Single Click (rapid pressure <1sec)

• Turns off the output (ON / OFF).

Double Click (rapid pressure <1sec)

• Set maximum brightness (output = 100%)

Long Press (prolonged pressure> 1sec)

• If the dimmer is in the OFF state, it sets the output to the minimum value (can be set using the programming key *, default = 1%)
• If the dimmer is in the ON state, the prolonged pressure allows the dimming of the output (up / down).
