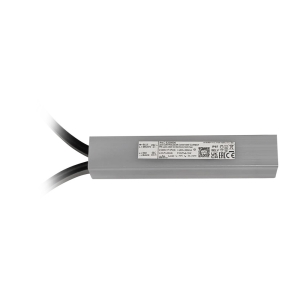

iLed Aqualed Slim 10W 500mA LED power supply constant current IP67

iLed Aqualed Slim 10W is a constant current LED driver manufactured by iLèd, designed to deliver stable and reliable power to LED module lighting systems. Its compact PVC housing, measuring 135 × 25.5 mm, allows easy integration into tight installation spaces while ensuring technical precision and a discreet profile.

The driver supplies a stabilised constant current output of 500 mA at a maximum output power of 10 W and a maximum voltage of 20 Vdc, making it compatible with 3-6 LED modules in constant current mode (nominal DC output voltage at load: 9-20 V). The input is rated for 220-240 V AC mains supply. The IP67 protection rating ensures full dust-tightness and resistance to temporary water immersion, making it suitable for installations in humid or damp environments. Insulation Class II provides protection against electric shock without requiring earthing. The unit incorporates self-resetting protections against overheating, short circuits and open circuit on the secondary side, as well as surge protection up to 2 kV at the input, in compliance with EN 61347-1 C.5a. This item replaces model 99179, offering equivalent performance.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
