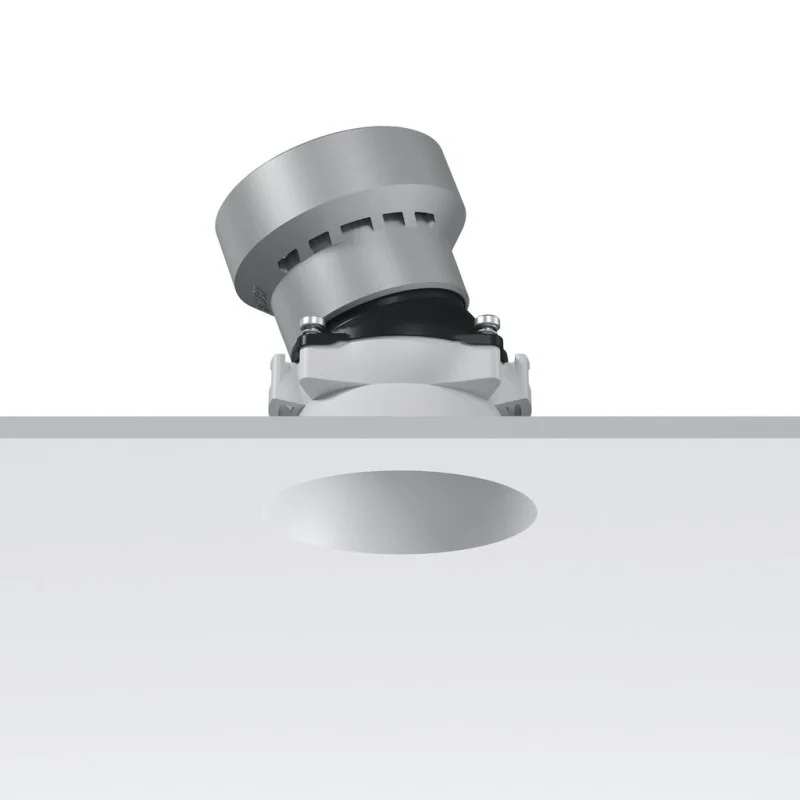

Kap D. 50 Adjustable - Optic Medium, recessed ceiling LED downlight. Aluminum body with liquid paint and metallic copper finish. Available in 5 finishes.
It is necessary to purchase the formwork separately for the correct installation of the product.
Read more ...Kap D. 50 Adjustable - Optic Medium, recessed LED downlight for indoor installations. Perfect in all environments. The Kap version has an aluminum body with liquid paint and metallic copper finish. The main optic is made of polished anodized aluminum while the lamp holder has an aluminum heat sink element and the recessed ring of the optic body is made of thermoplastic material. This version of the Kap is Led (included) with 7.5 Watt power. The light temperature is 3000 Kelvin (warm white) with a luminous flux of 635 Lumen. It has dimensions of 77mm in height, D. 54mm in diameter and D. 93mm in recessed hole diameter. The power source is excluded and the pre-installation frame is required. The Kap is available in five colors: White, gold, blue, black and copper. The IP54 degree of protection also makes it suitable for humid environments because it is protected from splashes of water and dust.
Dimensions
NOTES: Pre-installation frame to be ordered separately.
Reference: 127570
Electronic power supply adjustable in direct current with DIP-SWITCH. Multipower supply equipped with dip-switch for the selection of output current. IP20 driver, for indoor use. Voltage 220-240V. Dimensions: 146.5x43x22 mm. Constant current output from 125mA to 500mA. Dimensions: 146,5x43x22 mm.
Reference: 08.9114.00
No Trim pre-installation frame, for frameless installation in plasterboard for KAP 50 recessed spotlights.
![]() CECCHETTI on
2022-03-29 17:39:45 |
Question: Cosa vuol dire : Cornice di pre installazione da ordinare separatamente Quanto costa ? pls mi mandate il link . Cosa altro manca per la installazione (es. alimentatore ) ??? |
Answer: Salve , cornice installazione per cartongesso: https://www.diffusioneshop.com/flos-cornice-di-installazione-no-trim-per-kap Alimentatore: https://www.diffusioneshop.com/tci-alimentatore-led-240v-pro-flat-22-in-corrente-continua-con-dip-switch |
|
