EldoLED ECOdrive 560/A led power supply 50W 150-1400mA Dimmable
    • EldoLED ECOdrive 560/A led power supply 50W 150-1400mA Dimmable
    • EldoLED ECOdrive 560/A led power supply 50W 150-1400mA Dimmable
    • EldoLED ECOdrive 560/A led power supply 50W 150-1400mA Dimmable
    • EldoLED ECOdrive 560/A led power supply 50W 150-1400mA Dimmable

    EldoLED ECOdrive 560/A led power supply 50W 150-1400mA Dimmable

    Brand :
    €63.25
    24 / 48 hours

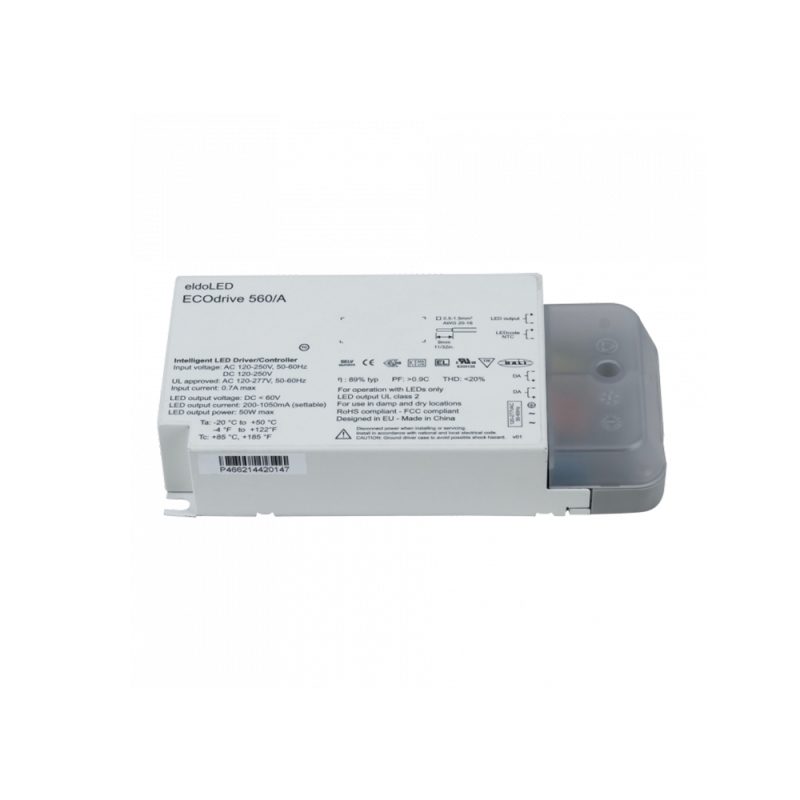

    ECOdrive digital programmable LED driver, 50W Max power in constant current adjustable from 150 to 1400mA offers standard LED fixtures maximum dimming with DALI2 system without flickering up to 1% of light output. Input voltage 120-277V. Programmed at 200mA.

    Read more ...
    local_shipping Shipping time:
    Shipped in 1-2 days
    check_circle
    In stock
    10 Items
    call_made Click here for availability information

    Quantity

    Description

    The LED driver is compatible with the DALI-2 lighting control protocol, and works seamlessly together with LED modules, controls and intelligent luminaire elements.

    ECOdrive, 50W, DALI-2, 1 control channel, constant current, 1x 55V output, side feed, square metal/plastic.

    Features & benefits

    Natural dimming Dim to 1%, smooth brightness changes, excellent flicker performance, adaptable dimming curves, configurable minimum dimming level Symbiosis Seamless interoperability with LED modules, controls and in-luminaire intelligent devices LEDcode LEDcode2 connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices

    Programmable Fine-tune your driver for any application

    Performance Universal input voltage range, low inrush current and total harmonic distortion (THD), high power factor and efficiency

    Camera compatibility Hybrid HydraDrive technology is proven to work in TV studios and security camera environments

    Nominal voltage 110-127V or 220-240V . Dimensions 153x76x30 mm

    EldoLED
    check_circle
    In stock
    10 Items

    Data sheet :

    Barcode
    8717748362971
    Reference
    EC0560A
    Input voltage
    100-240 V
    Depth in mm
    30
    Width in mm
    76
    Length in mm
    153
    Degree of protection
    IP20
    Adjustable power
    Dimmable
    Constant current output
    150~1400mA
    Power output in watts
    50 w
    Insulation class
    Insulation class II
    Compatible voltage
    EU-AUD-USA-UK-JAP
    Download :

    attach_file Download
