Driver led in constant current 60w ELV triac dimmable

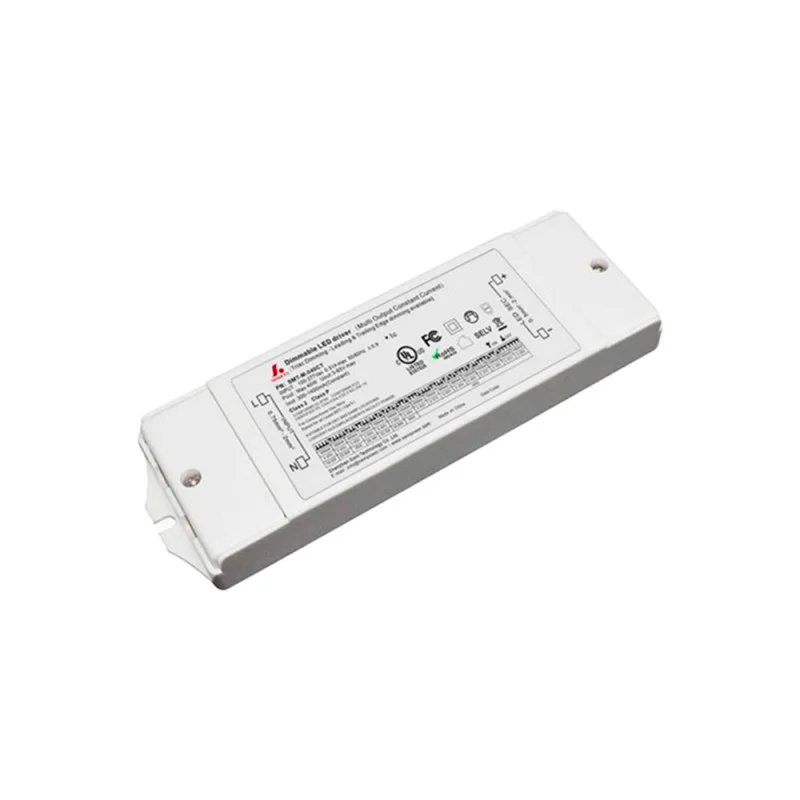

LED Driver in Constant Current 60W ELV Triac Dimmable (ref. SMT-M-060CT) is a multiwatt constant current LED driver featuring phase-cut dimming via IGBT-Triac technology, compatible with both leading edge and trailing edge Triac dimmers. Built in plastic with an IP20 protection rating, it is designed for indoor installation in dry or damp locations. Its compact dimensions — 192.5 x 62 x 24 mm — and white finish make it easy to integrate into false ceilings, cable ducts and technical housings.

The driver accepts a universal input voltage from 100 to 240 V AC, making it compatible with electrical standards in Europe, Australia, the USA, the UK and Japan. The built-in active PFC function ensures efficiency of up to 80%, while cooling is achieved through free air convection, with no need for fans. The driver is Class 2 protected and features integrated protections against short circuit, over-current and overload: in short-circuit mode it operates at constant current and automatically recovers once the fault condition is cleared; in overload mode the Hiccup function activates with automatic reset. In the event of overtemperature (above 50 ±5 °C), the output current is reduced to 50% to protect the system. The no-load output voltage is 75 V max.

One of the most distinctive features of this driver is its dip-switch configuration flexibility, allowing the user to select the desired output current from the following values: 600 mA (3–65 V, 39 W), 700 mA (3–65 V, 45.5 W), 800 mA (3–65 V, 52 W), 900 mA (3–65 V, 58.5 W), 1.0 A (3–60 V, 60 W), 1.1 A (3–55 V, 60 W), 1.2 A (3–50 V, 60 W), 1.3 A (3–46 V, 60 W), 1.4 A (3–43 V, 60 W), 1.5 A (3–40 V, 60 W), 1.6 A (3–38 V, 60 W), 1.7 A (3–35 V, 60 W), 1.8 A (3–33 V, 60 W), 1.9 A (3–32 V, 60 W), 2.0 A (3–30 V, 60 W), 2.1 A (3–39 V, 60 W). This wide range of configurations makes the driver suitable for a variety of LED lighting and signage applications, ensuring flicker-free dimming and broad compatibility with the main Triac systems available on the market.
