Dimmer Strip LED RF Reel 4 zone 2.4GHz 12V-24V max 10A with Remote

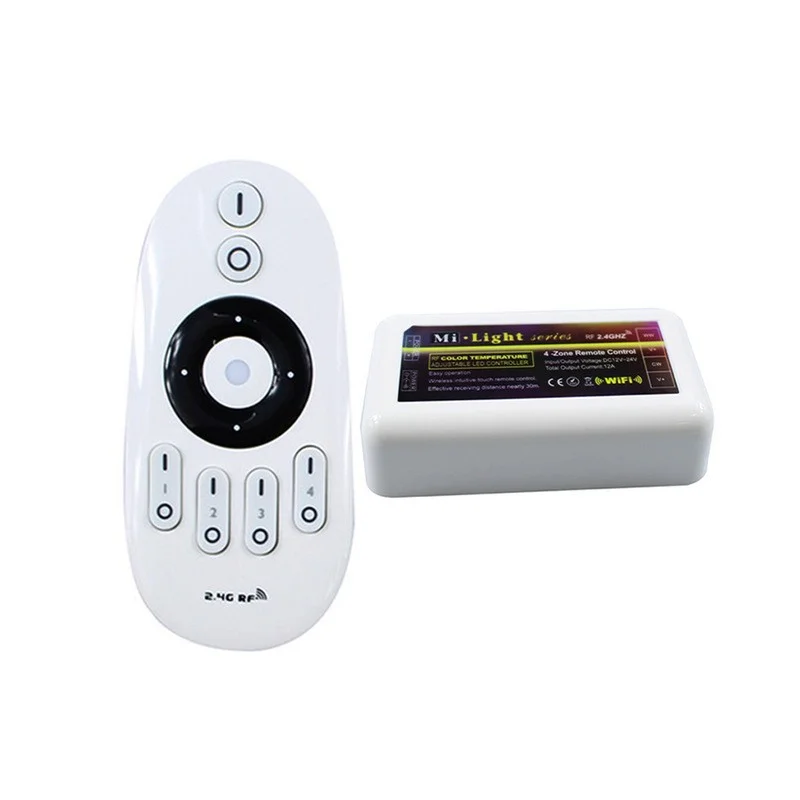

Dimmer Strip LED RF Reel 4 Zone 2.4GHz CT-MON-122-RF241V2 is a 2.4GHz RF radio frequency dimmer kit designed for wireless control of monochromatic LED strips powered at 12V or 24V DC. The kit includes the receiver controller and a 4-zone remote control with 2.4G technology, housed in an ABS casing, with a protection rating of IP20, suitable for indoor installations.

The system allows independent management of up to 4 separate LED strip zones, with a maximum current capacity of 10A and an absorbed power of up to 240W at 24V (120W at 12V). The output current per channel is 6A, ensuring stable and reliable brightness control. The controller features compact dimensions of 85 × 45 × 22 mm, making installation easy even in tight spaces. The remote control is compatible with the main international voltage standards (EU, AUD, USA, UK, JAP) and requires 2 AAA batteries (not included). The dimmable function allows precise adjustment of the brightness of each zone, while the LED strip always turns on at the brightness level set during the last stored dimming session, ensuring consistent and convenient use.

The synchronization procedure between the remote and the controller is straightforward: after correctly connecting the power supply and load to the controller, simply disconnect and restore the power supply, then press the ZONE ON button of the desired zone 3 times within 3 seconds. The LEDs blinking 3 times confirms successful synchronization. This system is the ideal solution for residential and commercial installations requiring flexible, multi-zone LED lighting control.
