AC DIMEMR + FADER
DC Input 230Vac
Command:
- N.O. Push Button
1 output at 200W max
1 output channel for R-C loads
Adjustable the brightness of white light
Single channel dimmer output phase-cut (trailing edge) For LED Lamp dimmable and Halogen
Lamp dimmable.
Typical Efficiency > 95%
Memory function
Push Menù:
- Minimum value of dimming adjustable
- Power-on ramp (fade up) and Power-off ramp (fade-out) adjustable
Optimized output curve
Soft Start and Soft stop
100% Functional Test
Be the first to ask a question about this product!
Reference: 551010.0DA

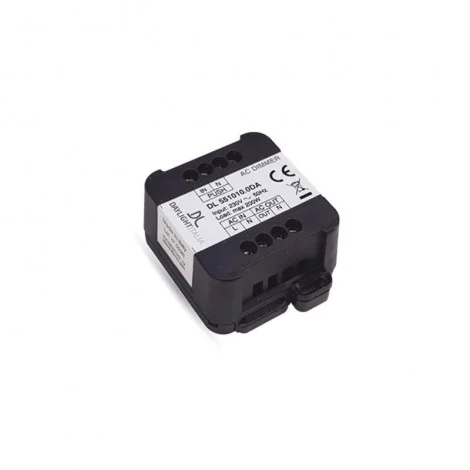

The AC Dimmer is a single channel dimmer output phase-cut and it adjusts the brightness of dimmable LED lamp, dimmable halogen lamp and AC phase-cut power supply. Adjustment by Push Button.
Reference: 551010.00A
Resistive power adjustable 25-400W (Incandescent and Halogen lamps), Inductive power adjustable 25-300W (Toroidal transformers, Electromechanical and Electronic), Led and CFL lamps dimmable 4 - 200W, Led lamps 12Vac with transformer 10 - 200W, Modules ACRICH 230V 4 - 150
Reference: E1-C
Electronic switch with touch spring to be incorporated and connected to 12V and 24Volt LED strips with memory and dimmer function included in the switch. Ideal to be applied inside aluminum profiles and profiles. It manages up to a maximum of 72W at 24V and 36W at 12V.
