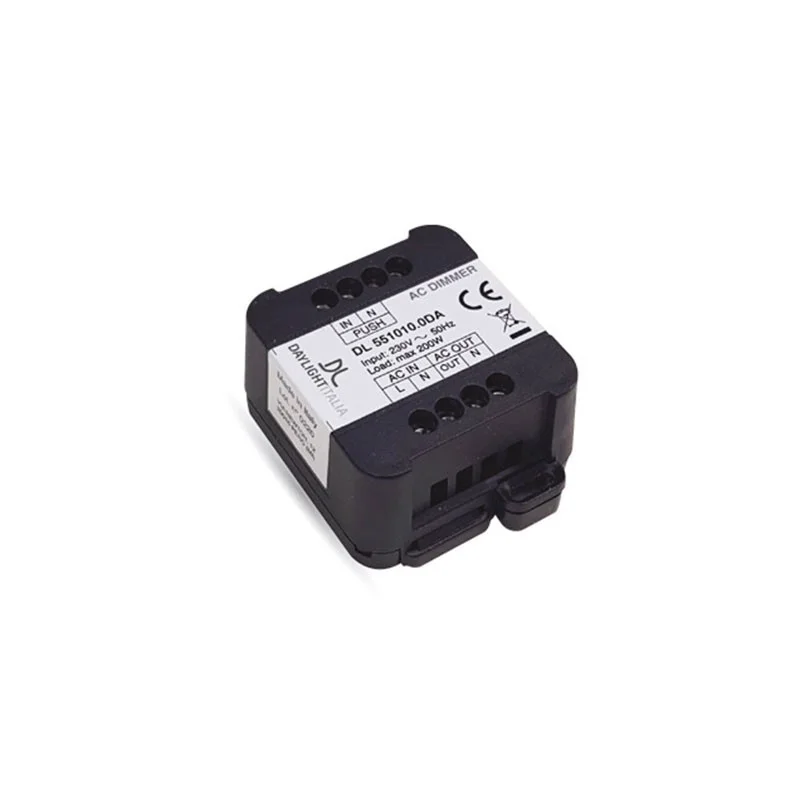

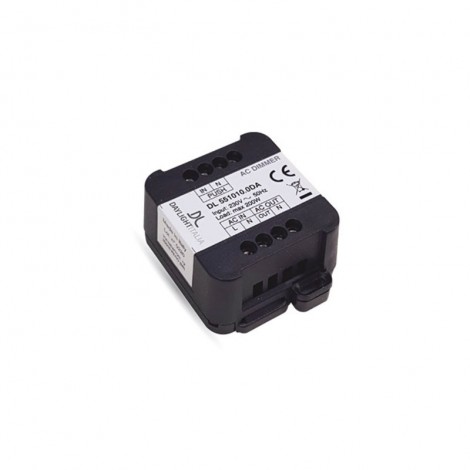

    Daylight AC Dimmer for LED Phase Cut System with push DALI button

    Brand :
    ¥473.07
    The product can be ordered

    The AC Dimmer is a single channel dimmer output phase-cut and it adjusts the brightness of dimmable LED lamp, dimmable halogen lamp and AC phase-cut power supply. Adjustment by Push DALI.

    Read more ...
    local_shipping Shipping time:
    Shipped in 7-21 working days
    cancel
    Availability on order
    call_made Click here for availability information

    Quantity

    Description

    AC DIMEMR + FADER

    DC Input 230Vac

    Command:

    - N.O. Push Button

    1 output at 200W max

    1 output channel for R-C loads

    Adjustable the brightness of white light

    Single channel dimmer output phase-cut (trailing edge) For LED Lamp dimmable and Halogen

    Lamp dimmable.

    Typical Efficiency > 95%

    Memory function

    Push Menù:

    - Minimum value of dimming adjustable

    - Power-on ramp (fade up) and Power-off ramp (fade-out) adjustable

    Optimized output curve

    Soft Start and Soft stop

    100% Functional Test

    Daylight Italia
    cancel
    Availability on order

    Data sheet :

    Barcode
    8056585223183
    Reference
    551039.0DA
    Input voltage
    220-240 V
    Depth in mm
    25
    Width in mm
    40
    Length in mm
    57
    Degree of protection
    IP20
    Material
    Polycarbonate
    Adjustable power
    With DALI & Push system
    Control system
    Button
    Bulb power
    200W
