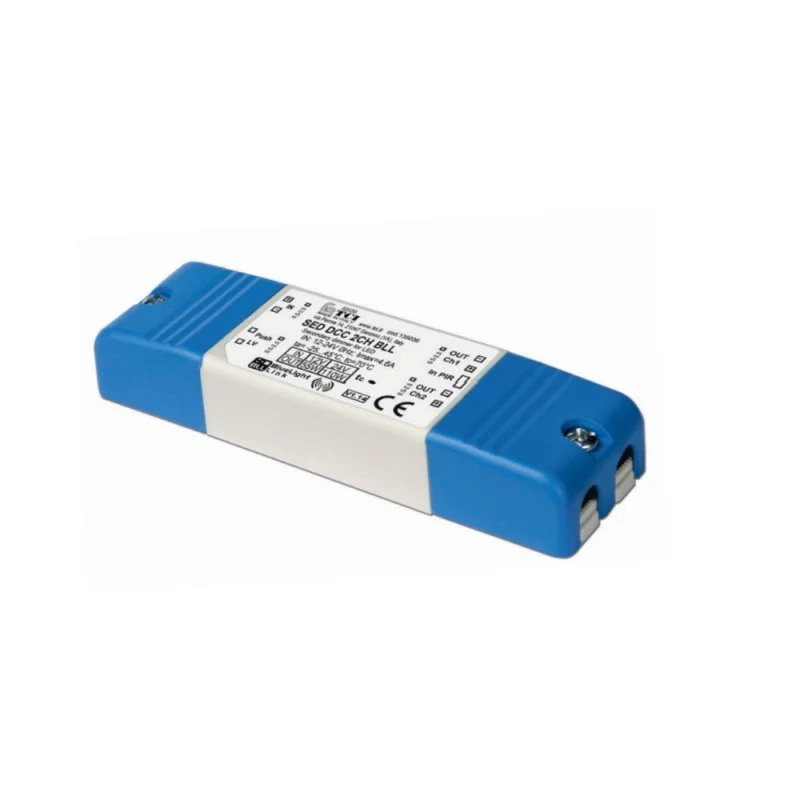

TCI Wireless Dimmer BLL 12/24V 4.5A SED DCC 2CH

Features:WIRELESS BLL low voltage PWM dimmer for built-in use. Provided with 2 independent output channels controllable via

BLL APP. Extremely low safety voltage 12/24 V. It can be used for lighting equipment in protection class III. IP20 independent driver, for indoor use. Supplied with terminal cover and cable retainer. Input and output terminal blocks on opposite side, wire cross-section 2,5 mm2 / AWG13. Ultra compact size.

Protections:

 - against overheating and short circuits;

 - against input voltage spikes;

 - against overloads.

Thermal protection = C.5.a.

Operation Mode:Light regulation 0/1 - 100 % by means of PUSH LV function and APP or compatible devices for BLL integrated WIRELESS module.

Features of remote control dimming by APP:

 - can turn on and off;

 - independent regulation of 2 channels (SINGLE CHANNEL mode / 2 CHANNELS mode);

 - light show play.

Light regulation 0/1 - 100 % by means of PUSH LV function:

 - a short push to turn ON and OFF;

 - a longer push from ON state to enable colour selection mode;

 - a longer push from OFF state to enable colours sequence mode;

 - a longer push to increase or decrease light intensity;

 - colour memory at mains restore.

PUSH LV: Low Voltage Push, no connection to the main (normally open). ATTENTION: only use normally open push buttons with no incorporated warning light.

-2X12/24V 4.5A max

For more information, see the attached PDF.
