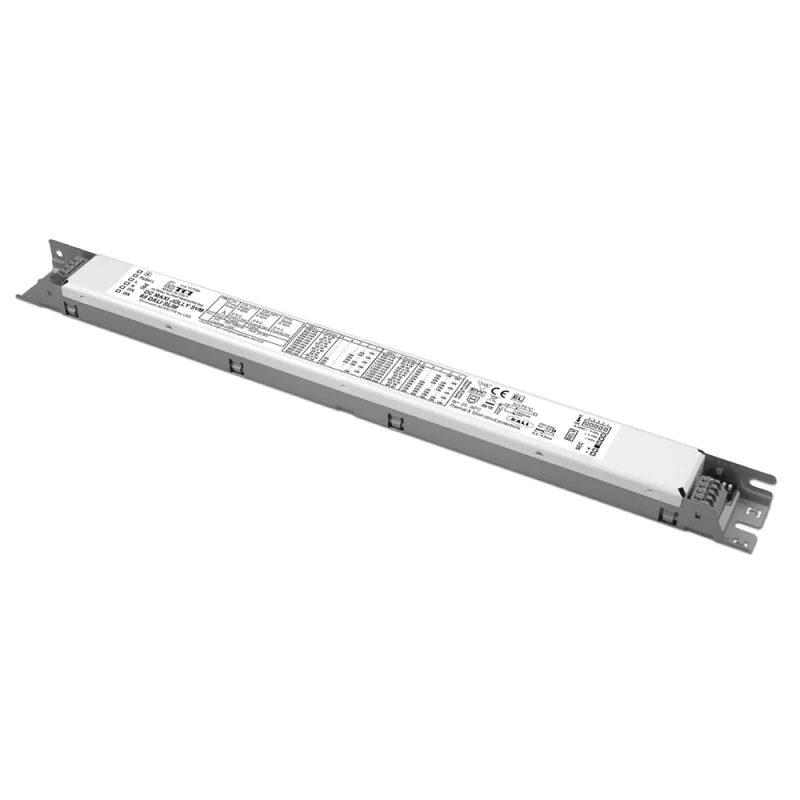

TCI LED DC power supply MAXI JOLLY SVM 65W slim Dali Push dimmable

Multipower driver supplied with dip-switch for the selection of the output current.

Driver for built-in use for class I lighting equipment; luminaire enclosure is necessary for protection against accidental contact with live parts.

Active Power Factor Corrector.

Analogical input for thermal sensor connection.

Current regulation ±5 % including temperature variations. Input and output terminal blocks on the opposite sides (input: wire cross-section up to 1,5 mm2 / AWG15; output: wire cross-section up to 0,5 mm2 / AWG20). Protections:

against overheating and short circuits;

against mains voltage spikes;

against overloads.

Thermal protection = C.5.a.

Nominal voltage 110-127V or 220-240V . Dimensions 259x30x21 mm.

Operation Mode:

1. Light regulation 0/1 - 100 % by means of DALI, PUSH function, 0/1...10 V local interface (I=1 mA) or 100 Kohm potentiometer.
2. Default dimming AM+PWM: 1-8% PWM 2 kHz+8-100% AM.
3. Full AM DIMMING: 1 - 100%.
4. Compatible with standard DALI interfaces.
5. Designed to work with DALI-2 systems.
6. Light regulation 0/1 - 100 % by means of PUSH SWITCH function (mains voltage):

- a short push to turn on and off;

- a longer push to increase or decrease light intensity;

- regulation automatically stops at minimum and maximum values;

- for another on, regulation or off command, release the push button and give the desired command again;

- dimming level memory at mains restore.

• Possibility to use PUSH function to 4/5 drivers.

• Maximum length of the cable, from push button to last driver, must bemax. 15 m / 49 ft. In case of applications where the cable is longer than 15 m / 49 ft, keep this separate from the 110 - 240 Volt mains cable.

• ATTENTION: only use normally open push buttons with no incorporated warning light.

• Specific dimming terminal connection with a 0/1...10 Vdc electronic potentiometer (0/1...10 V local dimming, double insulation required for external connection).

Dip-switc selection of the constant output current Variants:

17,5W (17,5) 20 ... 50V 350 mA const

20W (20) 20 ... 50V 400 mA const

22,5W (22,5) 20 ... 50V 450 mA const

25W (25) 20 ... 50V 500 mA const.

27,5W (27,5) 20 ... 50V 550 mA const.

30W (30) 20 ... 50V 600 mA const.

32,5W (32,5) 20 ... 50V 650 mA cost.

35W (35) 20 ... 50V 700 mA const.

37,5W (37,5) 20 ... 50V 750 mA const.

40W (40) 20 ... 50V 800 mA const

42,5W (42,5) 20 ... 50V 850 mA cost.

45W (45) 20 ... 50V 900 mA const.

47,5W (45) 20 ... 50V 950 mA const.

50W (45) 20 ... 50V 1000 mA const.

52,5W (45) 20 ... 50V 1050 mA cost.

55W (45) 20 ... 50V 1100 mA cost.

57,5W (45) 20 ... 50V 1150 mA const.

60W (45) 20 ... 50V 1200 mA const.

62,5W (45) 20 ... 50V 1250 mA const.

65W (45) 20 ... 50V 1300 mA const.

65W (45) 20 ... 50V 1350 mA const.

65W (45) 20 ... 50V 1400 mA const.
