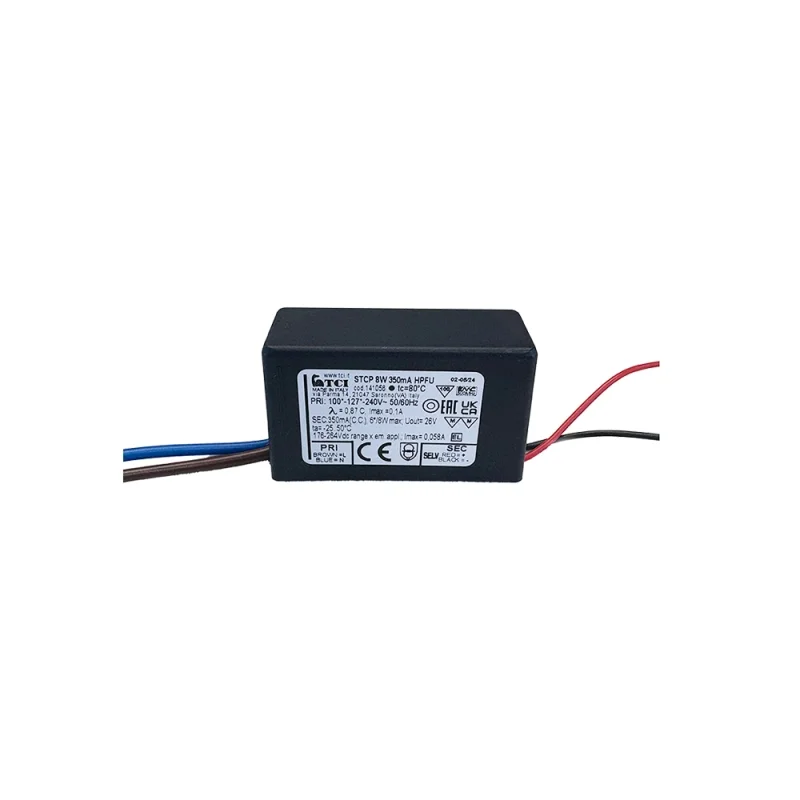

TCI Driver LED HPFU 8W 350mA IP54

The TCI HPFU LED Driver 8W 350mA IP54 is a constant current electronic driver designed to ensure reliable and precise power supply for professional LED light sources. TCI reference 141056, this driver stands out for its ultra-compact dimensions of 59x32x24,5 mm and its plastic housing with IP54 protection rating.

Thanks to the IP54 rating, the TCI HPFU driver is ideal for installations in humid environments or areas exposed to water spray, significantly extending its range of applications beyond standard drivers. It is compatible with lighting equipment in protection class I and II.

Main technical features

The driver delivers an output power of 8W with a constant current of 350mA and an output voltage range of 2 to 23V. The accepted input voltage is universal, from 100 to 240V AC, making it suitable for any electrical system worldwide. Current regulation is maintained within a tolerance of -8%...+5%, including temperature variations. Input and output cables are positioned on opposite sides for easy wiring. The driver is not dimmable.

Safety and protections

The TCI HPFU 8W features a comprehensive protection system, including thermal and short-circuit protection, protection against mains voltage spikes, and protection against overloads, ensuring long service life and full installation safety.

Applications

This TCI LED driver is suitable for professional lighting fixtures, including stage lighting, photographic and television studios, and installations in environments with humidity or condensation.

For full specifications and installation details, please refer to the attached technical PDF.
