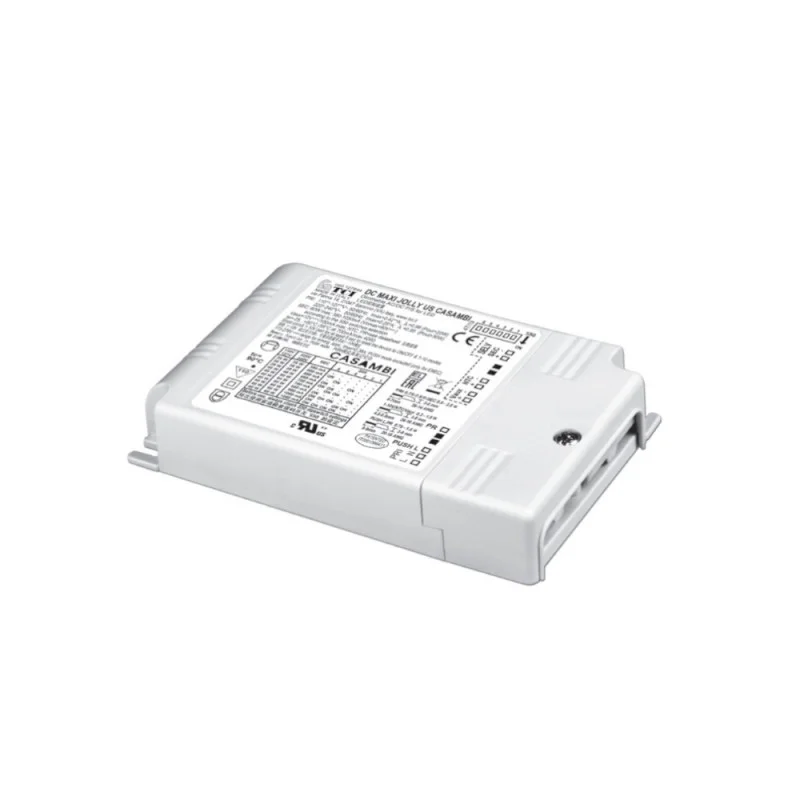

TCI Driver LED MAXI JOLLY 60W SV CASAMBI

The TCI MAXI JOLLY 60W SV CASAMBI is a multipower constant current LED driver featuring an integrated CASAMBI wireless module, designed for intelligent control of professional LED lighting systems. A dip-switch for output current selection allows precise configuration to suit any project requirement.

Ideal for high-end residential and commercial installations, this TCI driver enables advanced light management via the CASAMBI app or a physical push button, delivering flexibility and comfort without compromise.

Key Technical Specifications

The driver operates at an input voltage of 220-240 V and covers a power range from 25 W to 60 W, with selectable output currents from 350 mA up to 1.05 A. Its compact dimensions of 124 x 79 x 22 mm in PVC material simplify installation in tight spaces. Brightness adjustment from 0/0.5% to 100% is achieved via PUSH function or app, with dimming level memory on mains restore. It features an auxiliary 12 V max 100 mA output, an NTC analogue input for thermal sensor connection, and an active PFC. Input and output terminals are on the same side, accepting cables up to 2.5 mm².

Safety and Protections

Rated IP20 for indoor use and built to Class II electric shock protection standards, the driver incorporates thermal protection C.5.a., short-circuit protection, mains voltage spike protection and overload protection, ensuring long-term system reliability.

Applications

Perfectly suited for design LED lighting systems in residential, retail, office and contract environments where wireless lighting control via the CASAMBI ecosystem is required.

For full configuration details and current output tables, please refer to the attached technical PDF.
