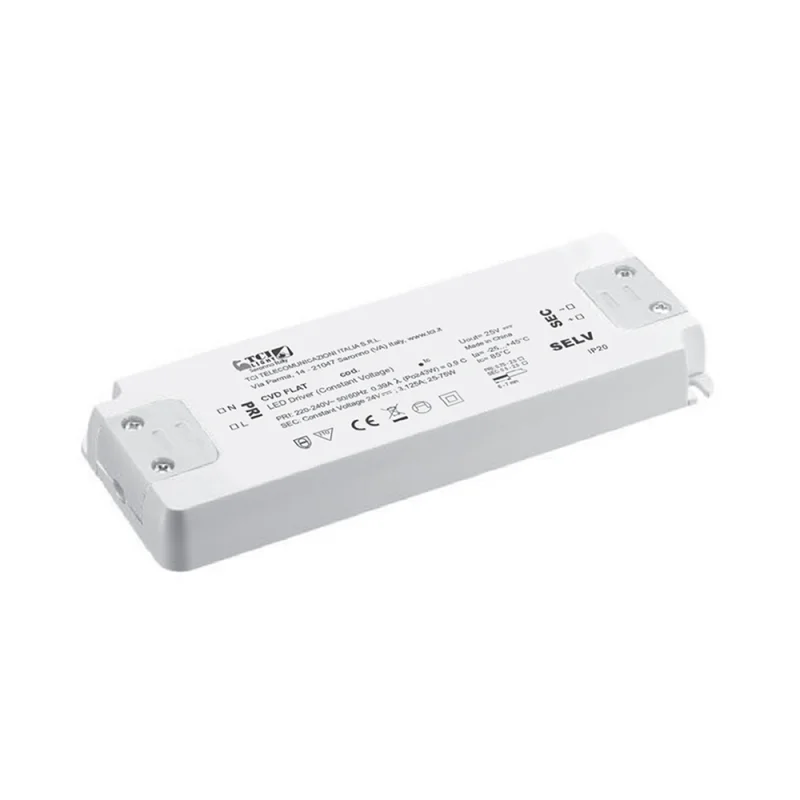

TCI driver CVD FLAT 75W 24V 220-240V constant voltage

The TCI CVD FLAT 75W 24V is a constant voltage LED driver designed to power 24V DC LED strips and modules. This compact and reliable electronic driver by TCI delivers high performance for indoor LED lighting installations in both residential and commercial settings.

Thanks to its ultra-slim profile and compact dimensions of 160 x 58 x 18 mm, the CVD FLAT fits easily into suspended ceilings, furniture and LED profiles where space is limited, making it an ideal choice for architectural and design lighting projects.

Main technical features

The driver delivers an output power of 75W with a stable 24V DC output voltage and a maximum current of 3.12A. The input voltage is 220-240V AC, with compatibility for EU, AUS, USA, UK and Japan power grids. Energy efficiency exceeds 90%, ensuring low power consumption and minimal heat dissipation. The polycarbonate housing provides durability and lightweight construction, while opposing input and output terminals accept cables up to 2.5 mm² (AWG13), with cable clamps for diameters between 3 and 8 mm.

Safety and protections

The driver is rated Insulation Class II, providing protection against electric shock from both direct and indirect contact. It features thermal protection (C.5.e), short circuit protection, overload protection and protection against mains overvoltage, ensuring safety and long system life. The protection rating is IP20, suitable for dry indoor installations only.

Applications

The TCI CVD FLAT 75W is the ideal solution for powering 24V LED strips, LED modules and linear lighting systems in residential, retail, hospitality and office environments. Perfect for recessed niches, suspended ceilings and architectural profiles.

For the full datasheet and installation specifications, please refer to the PDF attached to the product page.
