TCI driver CVD FLAT 200W 24V 220-240V constant voltage

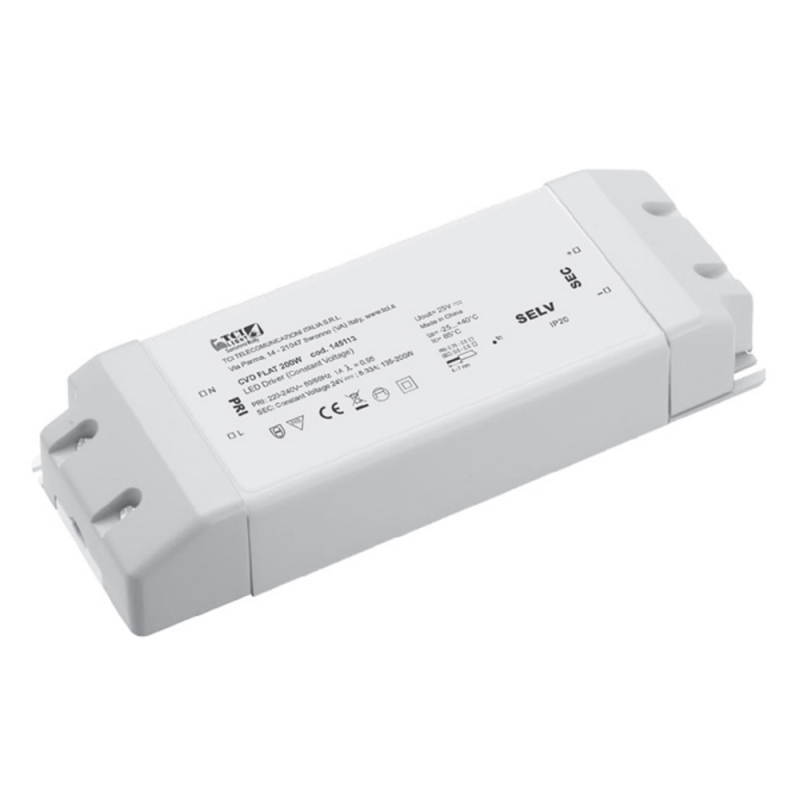

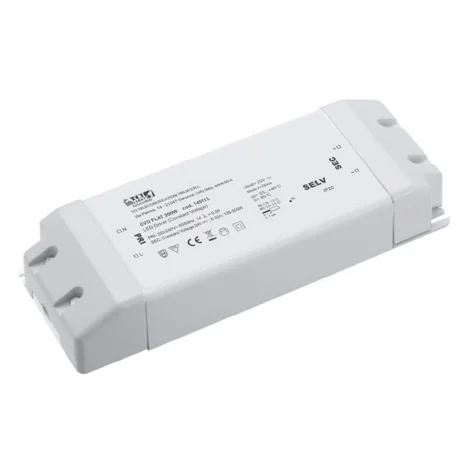

The TCI CVD FLAT 200W 24V driver is a high-efficiency constant voltage power supply designed to feed 24V DC LED strips and LED modules. Referenced as TCI 145113, this electronic driver delivers reliable performance and straightforward installation in indoor environments.

Thanks to its slim, flat profile, the TCI CVD FLAT fits seamlessly into false ceilings, technical cabinets and architectural profiles, making it the ideal choice for residential and commercial LED lighting systems powered at low voltage.

Key technical specifications

The driver delivers a maximum output power of 200W at a constant output voltage of 24V DC, with a peak output current of 8.33A, ensuring stable operation for LED loads between 135W and 200W. Efficiency exceeds 92%, minimising heat loss and energy waste. The input voltage range is 220-240V AC, compatible with electrical standards in the EU, Australia, USA, UK and Japan. The polycarbonate housing measures 205 x 71 x 35 mm, combining lightness with durability. Opposing input and output terminals accept cables up to 4 mm² (AWG11), with cable clamps for diameters from 3 to 8 mm.

Safety and protections

The driver is rated Insulation Class II, providing protection against electric shock from both direct and indirect contact. The IP20 protection degree makes it suitable for indoor use only. Built-in protections cover short circuits, overloads and mains voltage surges, complemented by thermal protection class C.5.e.

Applications

Perfectly suited for powering 24V LED strips in residential, retail, hospitality and architectural lighting projects where reliability and continuous operation are essential.
