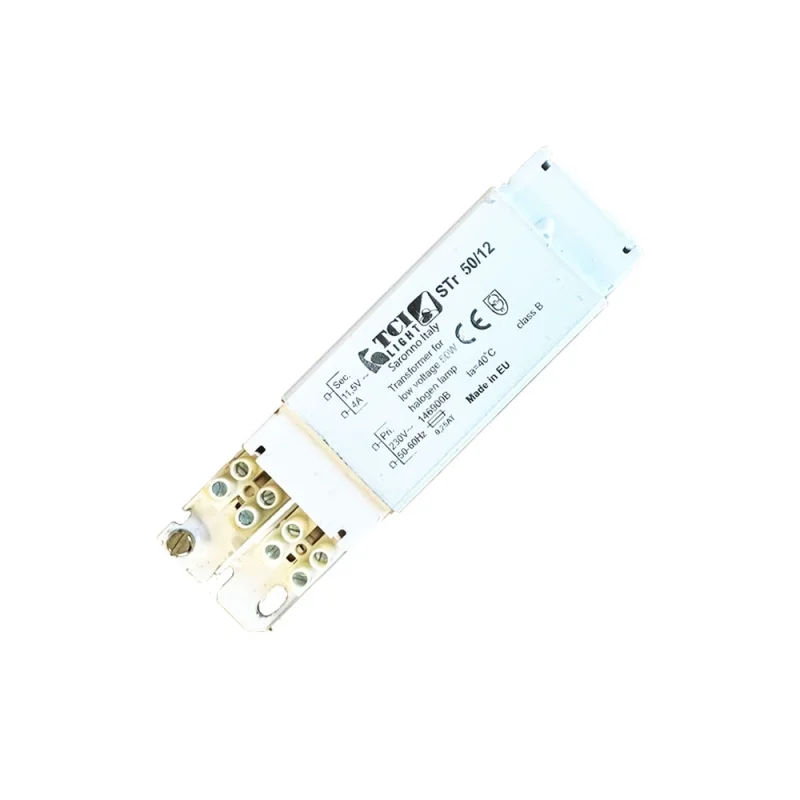

TCI 50 Str/12 mechanical 12V transformer
  • TCI 50 Str/12 mechanical 12V transformer
  • TCI 50 Str/12 mechanical 12V low voltage transformer for LED

TCI 50 Str/12 mechanical 12V transformer

Brand :
£25.94 Save 15%
£30.51
24 / 48 hours

More buy more save

For 5 products spend per unit
For 10 products spend per unit

Mechanical Transformer 230V -> 12V ac . Power up to 50W . For LED or halogen bulbs

Read more ...
local_shipping Shipping time:
Shipped in 1-2 days
check_circle
In stock
52 Items
call_made Click here for availability information

Quantity

Description

. IP00 trasformer to be incorporated.
. Class I protection against direct and indirect electronic contacts.
. Safety transformer with separated winding.
. Thermal insulation class C/F=155°C.
. Windings class H=180°C.
. There are vacuum impregnated in polyester resin.
. Input and output terminal blocks on the same side (0,75 - 2,5 mm2 terminal area).
. Transformer can be secured with slots for screws.
. Complete with grounding terminals.


240 V versions available upon request.

TCI
check_circle
In stock
52 Items

Data sheet :

Barcode
8058774346819
Reference
146900B
Input voltage
220-240 V
Output voltage
12V AC
Depth in mm
34
Width in mm
40
Length in mm
155
Degree of protection
IP20
Material
Steel
Light source
LED OR HALOGEN
Adjustable power
Not dimmable
Power output in watts
50 w
Insulation class
Insulation class I
Download :

attach_file Download

Questions

Question

Ce transformateur peut il remplacer tridonic 40-str/12 si v4 Pour une hotte aspirante de cuisine bosch fonctionnant actuellement avec des Ampoules halogène dont je pense que le transformateur doit être grillé et ne se fait plus ! Merci pour votre réponse. Cordialement

Answer

Bonjour,

oui c'est compatible, celui de notre site est légèrement plus puissant

Rousseau Dominique on 2023-12-05 15:46:44
Question

Bonjour, mon transformateur s'appelle TCI light Seranno 50-KTr/12 et le vôtre Str/12. Est-ce que le vôtre est équivalent au mien ?? Merci

Answer

oui pareil

BRIAND on 2023-03-16 15:39:26
Question

Hello, is this converter really mechanical (not electronic)?, if so, please explain how the conversion process is, and I want the internal components for it, thanks.

Answer

Hi ,

this transformer is mechanical there is an internal copper coil that transforms the 230 Volt into 12 Volt with the electromagnetic system

Diffusione Luce s.r.l.

aurora on 2022-02-27 06:09:48
Question

Is the output AC (as written) or DC ?

Answer

Hi Rami ,

the output is in AC voltage .

Diffusione Luce s.r.l.

Rami on 2022-02-21 07:33:36
Question

Hi, I need this part: https://www.diffusioneshop.com/en/tci-mechanical-12v-low-voltage-transformer-for-led-and-halogen-bulbs/ in 240V? Do you have 240V in stock? How long to ship to australia?

Answer

hi , product is done for 240 v.

In Australia delivery in 2/3 days .

With best regards Diffusione Luce s.r.l.

Jack on 2018-08-01 13:43:28
