Simes Linea Continua glass 24V Recessed LED IP67
  • Simes Linea Continua glass 24V Recessed LED IP67
  • Simes Linea Continua glass 24V Recessed LED IP67
  • Simes Continuous Line 24V Recessed Luminaire LED in
  • Simes Continuous Line 24V Recessed Luminaire LED in
  • Simes Continuous Line 24V Recessed Luminaire LED in

Simes Linea Continua glass 24V Recessed LED IP67

Select Product variant
Select Lunghezza
Select Version
SAR4,655.82
The product can be ordered

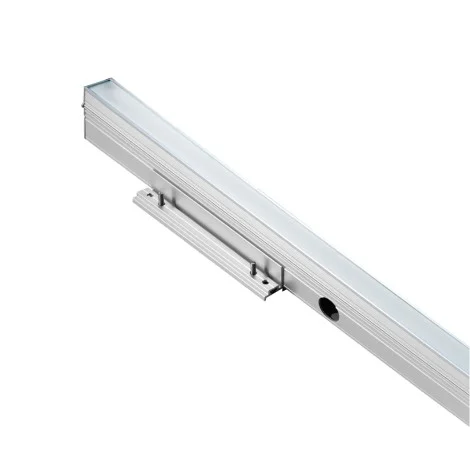

Walk-over LED luminaire for ground installation. Depth 90mm. IP67 protection degree available in Tunable White, RGBW and 3000k variants with acid-etched glass or transparent glass diffuser in lengths from 1000cm to 1500cm.

Read more ... arrow_drop_down
local_shipping
Shipped in 7-21 working days
More information about shipping

Quantity

Description

CHARACTERISTICS OF THE MATERIALS

Fixing base and formwork in EN AW-6060 anodized extruded aluminum with low copper content and high resistance to oxidation. Mechanical resistance IK 10 Maximum load 500 Kg

LIGHTING PERFORMANCE

Diffuser in transparent glass with a thickness of 15mm. Light source, with fixed lamp position. Yield --

LOW SURFACE TEMPERATURE

Diffuser temperature 39°C (Ta 25°C)

FORMWORK FOR INSTALLATION AND MAINTENANCE

The formwork is made of aluminum and is provided with a tear-off protective cover, to be removed after cementing the formwork flush with the floor and before installing the appliance.

WIRING

Continuous line is equipped with fixing supports that allow easy installation and perfect alignment of several products. Using the interlocking formwork/support system, it is extremely simple to level and align the formwork. The wiring is external to the formwork. The appliance can be leveled using adjustment bolts. Luminaire pre-wired with a single 0.15m SILICONE power cord. The result is a continuous line of light.Class of insulation: CLASS III

Product variants

1000 cm etched

  • 3000k - 10,3W 737lm - Ottica 75°x91°
  • Tunable white - 12W -715lm- Ottica 78°x95°
  • RGBW - 14,4W - 215lm - Ottica 74°x90°

1000 cm trasparent

  • 3000k - 10,3W 737lm - Ottica 78°x108°
  • Tunable white - 12W -715lm- Ottica 74°x108°
  • RGBW - 14,4W - 215lm - Ottica 74°x108°

1500 cm etched

  • 3000k - 15,5W 1105lm - Ottica 75°x91°
  • Tunable white - 18W -1072lm - Ottica 78°x95°
  • RGBW - 14,4W - 322lm - Ottica 74°x90°

1500 cm trasparent

  • 3000k - 15,5W 737lm - Ottica 78°x108°
  • Tunable white - 18W -715lm- Ottica 74°x108°
  • RGBW - 21,6W - 215lm - Ottica 74°x108°

For more information, see the attached PDF

Simes
Guaranteed Original Product

Data sheet

mpn
S.7023T
Reference
S.7023T
Input voltage
24 V AC/DC
Depth in mm
90
Width in mm
90
Length in mm
1000/1500
Degree of protection
IP67
Material
Aluminum
Average hours duration
50000
Primary color
GRAY COLOR
Driver power supply
Without driver
Complete with bulb
Bulb included
Carriageable
Yes
Formwork
Yes
Compatible voltage
EU-AUD-USA-UK-JAP
Download
picture_as_pdf Scheda tecnica picture_as_pdf Download 1 picture_as_pdf Download 2 picture_as_pdf Download 3
