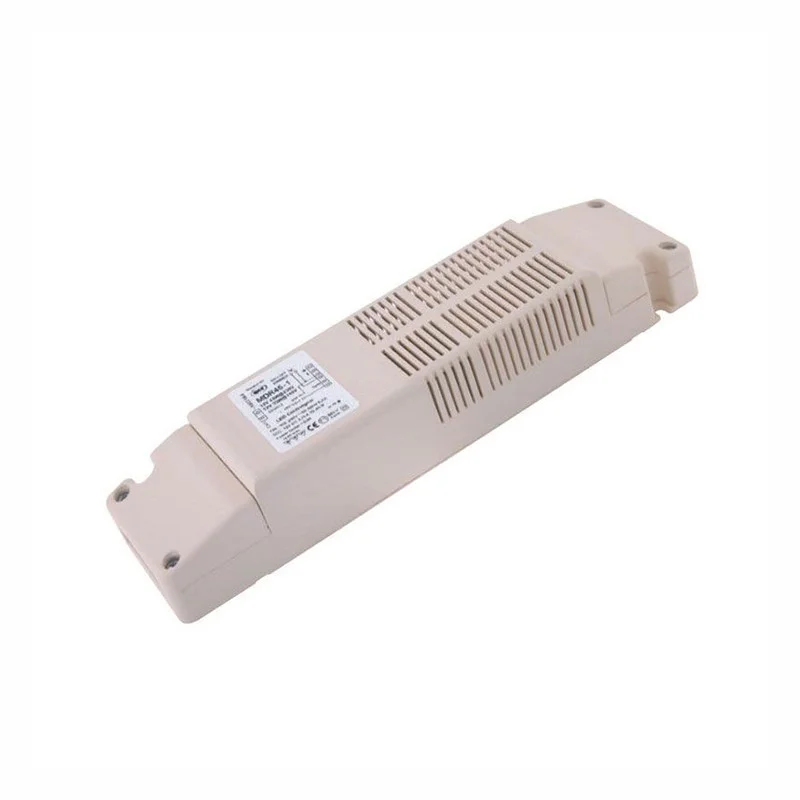

QLT MDR 60 24V DC Power Supply output PWM dimmable 0-10V or potentiometer

The QLT MDR60 24V DC power supply is an independent dimmable driver manufactured by QLT, designed for advanced control of LED strips and low-voltage lighting systems. Built in polycarbonate, model A40MDR06001B delivers a stabilised constant voltage output with PWM modulation at 300Hz (±5%), ensuring smooth and precise dimming. Brightness adjustment is achieved via a 0-10V signal or a 470K potentiometer, with switching on, regulation and switching off manageable through one or more buttons.

This power supply is ideal for both professional and residential installations requiring reliable and versatile dimming. The universal input voltage of 100-240V AC ensures compatibility with any electrical system. The output is configurable between 24V DC at 2500mA (60W max) or 24V DC at 1660mA (40W max), providing flexibility according to the connected load. The IP20 protection rating and insulation class II ensure safe operation in indoor environments. Self-restoring protections against overheating, short circuits and open circuits on the secondary side guarantee long-term reliability. The compact dimensions of 206 x 51 x 36 mm make it suitable for DIN rail mounting.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
