QLT Infrared Interface and Receiver IR 3R For RGB Systems For RGBox30/45/55

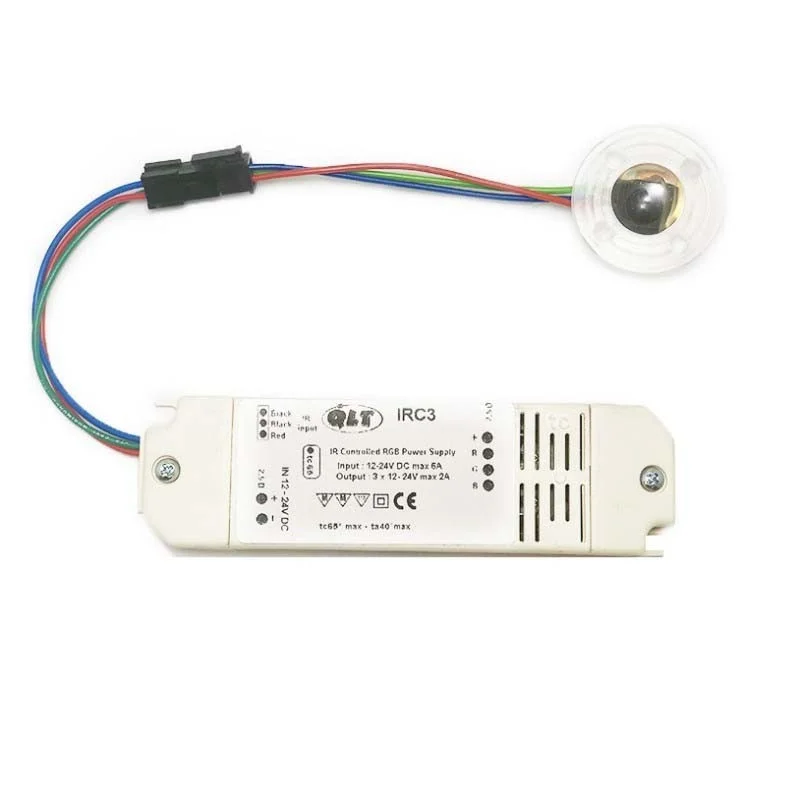

QLT Infrared Interface and Receiver IR 3R is the component dedicated to RGB lighting system control, designed by QLT to integrate with RGBox30, RGBox45 and RGBox55 control units. The device combines in a single unit the signal reception interface and the receiver lens, designed to be installed inside MR11 recessed spotlights with a 35 mm diameter, providing a discreet and functional solution for colour lighting installations.

This infrared receiver is ideal for completing RGB lighting systems in residential and commercial environments, operating on direct current at 12/24V DC with a 3-channel output of 2A per channel, totalling 6A. The infrared system enables full control of all functions — on/off, RGB colour selection, white, cyclic rotation, speed and brightness — with a range of up to 10 metres. The IP20 protection rating and insulation class III make it suitable for indoor use. Voltage compatibility covers EU, AUS, USA, UK and JAP standards. To complete the control system, the IR3T remote control and an RGBox30/45/55 control unit must be purchased separately.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
