Power supply 15W 250-350mA Led Driver Dimmable phase cut
  • Power supply 15W 250-350mA Led Driver Dimmable phase cut

Power supply 15W 250-350mA Led Driver Dimmable phase cut

AED120.54
24 / 48 hours

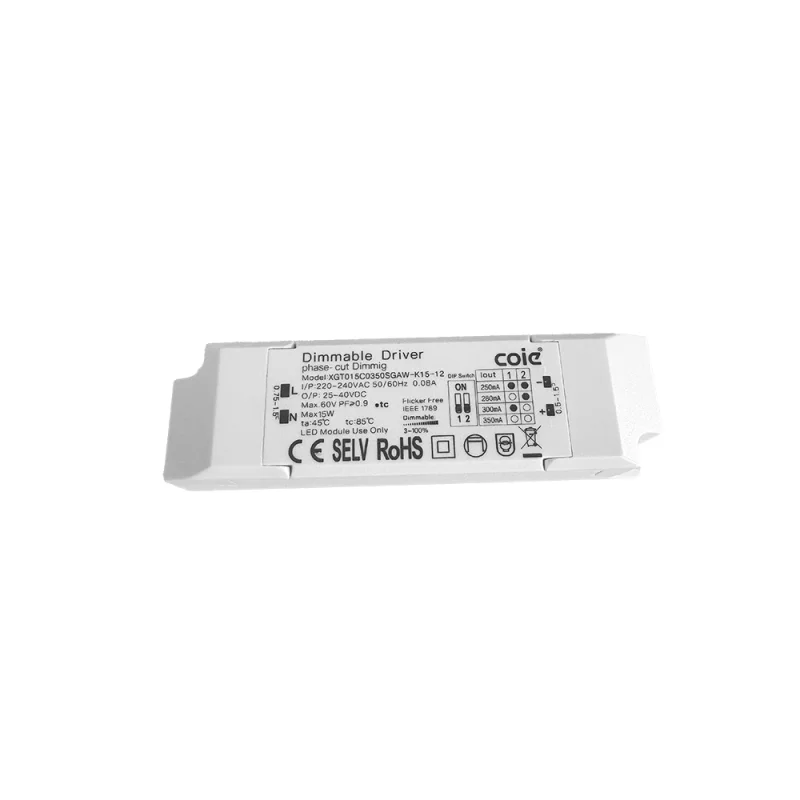

LED COIE power supply, small miniature driver, dimmable with phase cut (PHASE-CUT) in constant current of 250/280/300/350mA constant current of 15W 25-40Volt Max. Dimensions: 115x32x22m. Flicker free.

Read more ... arrow_drop_down
34 Items
local_shipping
Shipped in 1-2 days
More information about shipping

Quantity

Description

Features and Operation:

Input (I/P): Accepts AC 220-240V at 50/60Hz.

Output (O/P): Supplies DC 25-40V to the LED modules.

Output Current (lout): Adjustable via DIP switches, with options of 250mA, 280mA, 300mA, and 350mA.

Maximum Power: Supports a maximum load of 15W.

Dimmability: It is a phase-cut dimmable driver, meaning the light intensity can be adjusted from 3% to 100%.

Flicker Free: Designed to reduce light flicker (IEEE 1789 compliant).

Safety: It is CE, SELV, and RoHS marked, indicating compliance with safety and environmental standards.

Generico
Guaranteed Original Product
34 Items

Data sheet

Barcode
2000000007076
Reference
XGT015C0350SGAW-K15-12
Input voltage
220-240 V
Depth in mm
22
Width in mm
32
Length in mm
115
Degree of protection
IP20
Material
Pvc
Light source
LED
Adjustable power
Dimmable
Constant current output
250~350mA
Power output in watts
15W
Insulation class
Insulation class II
Warranty verified 2-year warranty from date of purchase
