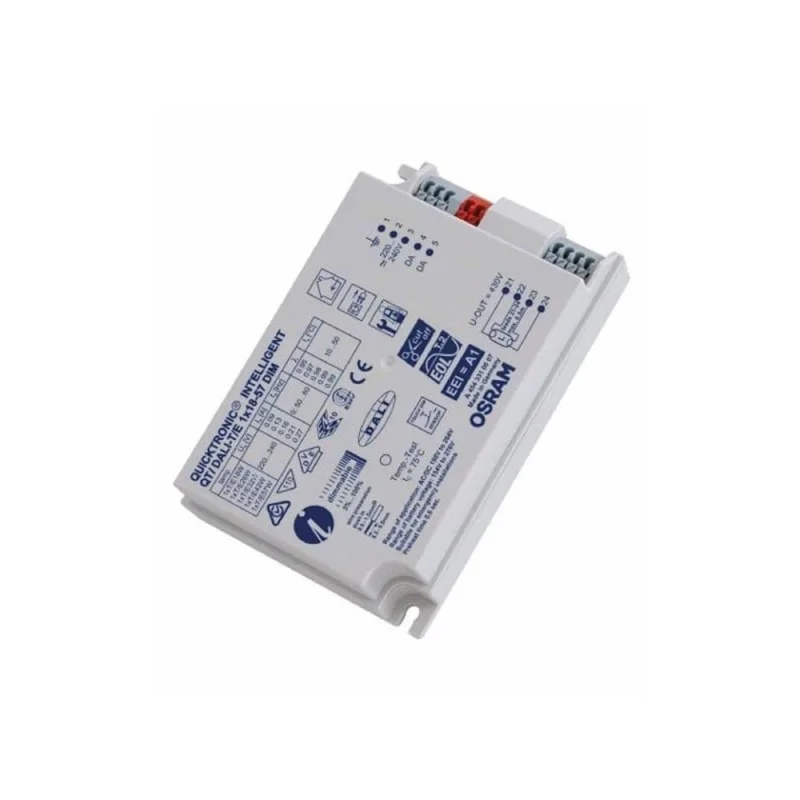

Osram Quicktronick Intelligent QT/DALI 1x18-57

Name: Osram Quicktronick Intelligent QT/DALI 1x18-57
Brand: Osram
SKU: QTITE1X1857DA
Price: 5155.20 TRY
Availability: InStock

Brand :

₺5,155.20

24 / 48 hours

More buy more save

For 10 products spend per unit

For 20 products spend per unit

Osram Quicktronick Intelligent QT/DALI ballast 1 x 18/26/32/42/57W CFL lamps, DALI dimmable, Input voltage 198-264 V, Nominal voltage 220-240 V, Mains frequency 50-60 Hz, DC voltage ( dc) 154-276V, Operating frequency 44-120kHz.

payments Secure payment:

delivery_truck_speed Delivery Information:

Fast shipping within 24-48 hours for products marked "Shipped in 1-2 days."

back_to_tab Product returns:

Returns must be made within 30 days of the delivery date.

Description
Product Details

Description

Nominal voltage 220 - 240 V Mains frequency 50 - 60 Hz Direct voltage (dc) 154…276 V Operating frequency 42…130 kHz Max. number of ECGs with autom. 10 to 12 Max No. of ECG p. automatic circuit 16 A 19 Trigger time 0.6 s Length 123 mm Width 79 mm Height 33 mm Distance between fixing holes-length 129.5 mm Distance between fixing holes-width 67 mm Cross-section of cables, input side 0.5-1.5 mm² Ambient temperature –10…+ 50 °C Optional wire clamp, see chapter Mounting ECG - wire clamp Interface for dimming DALI / Touch DIM / Touch DIM Sensor Dimming range 3…100% Dimmable Overtemperature protection Suitable for luminaires with front glass I Safety lock a end of life EOL T.2 VDE approval marks / E1 approval / VDE-EMC Acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/sec. EN 61547

Manufacturer : Osram

check_circle

In stock

In store we have 2 Items

Data sheet :

Barcode: 4008321060860
Reference: QTITE1X1857DA
Input voltage: 220-240 V
Depth in mm: 33
Width in mm: 79
Length in mm: 123
Degree of protection: IP20
Material: Pvc
Light source: NEON DISCHARGE
Adjustable power: with DALI system
Number of light sources: 1
Bulb power: 18w-57w
System: Electronic

Warranty :

2-year warranty from date of purchase
