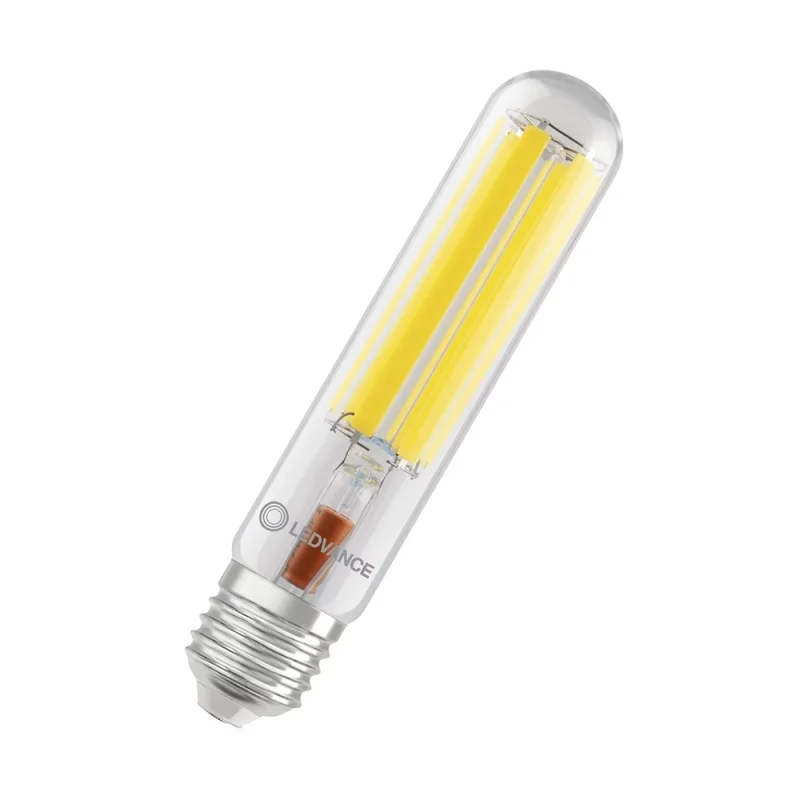

Osram lamp Nav 41W E40 Led Filament

Product Information:

Osram Ledvance Nav 100 led fil v bulb with 41W E40 socket

Product advantages

• Same design as traditional NAV lamps with solid glass bulb, transparent tubing
• Full use of the existing reflector thanks to the 360 degree beam angle
• Save up to 78% energy when used to replace sodium vapor (NAV) lamps
• 100% instant light, without delays in reaching the light regime
• Light distribution similar to traditional NAV lamps

Application areas

• Roads
• Lighting of large surfaces
• Pedestrian zones
• Parks
• External applications are in suitable luminaires

Product features

• Suitable for operation with conventional power supply (CCG) or 230 V AC mains
• Very high efficiency up to 190 lm/W
• Power factor: 0.9
• Degree of protection: IP65
• Surge protection: up to 2kV (L-N)
• Luminous flux: 4000K version neutral light 7500lm - 2700K version very warm light 7000lm
• Dimensions: Ø46 x 225 mm
• Bulb life: 25000 hours
• Power: 41W LED equivalent to 100W halogen
• Connection type E40

Safety tips

• Not suitable for operation with igniters.
• Capacitor operation can lead to a reduction in the power factor of the system.
• When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
• Not recommended for use in narrow luminaires and luminaires with narrow reflectors.
• Only suitable for temperatures up to 50°C inside the appliance. We do not recommend use in narrow light fixtures and fixtures with narrow reflectors.

For more information, see the attached PDF.
