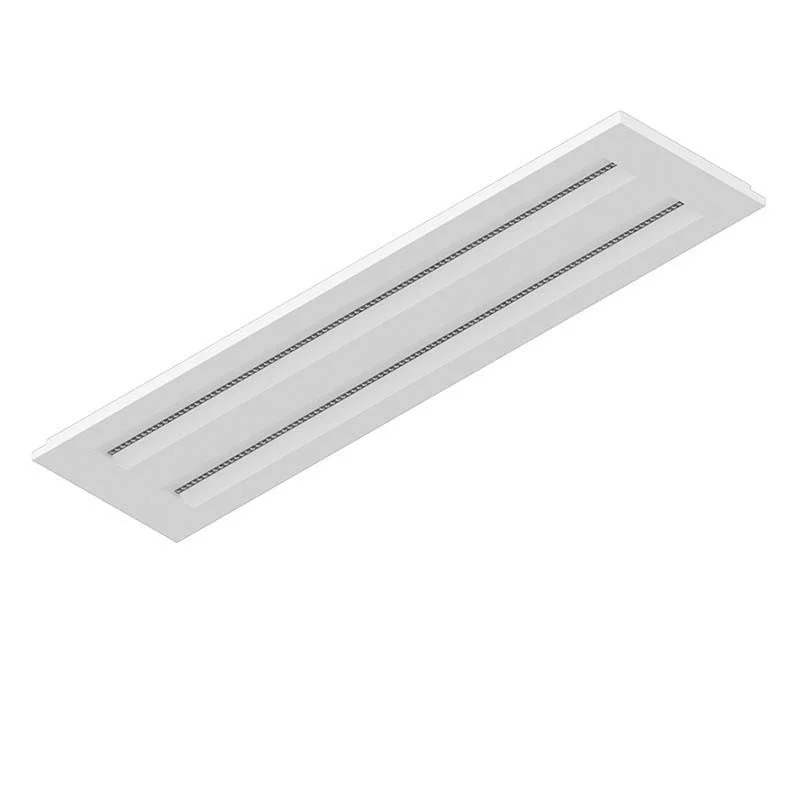

Novalux SCHOOL 50W UGR LED Panel 8025lm 1200x300mm

Easy installation, no need for accessories for recessed installation in false ceilings with 1200x300mm panels with visible structure. For other suspended or ceiling-mounted installations, the accessories must be ordered separately. With a lifespan of 50,000 hours, and easy maintenance, it reduces energy costs and carbon emissions. Electronic power supply included.

Separability of components for complete disposal at the end of their life.

Electronic power supply included.

Installations

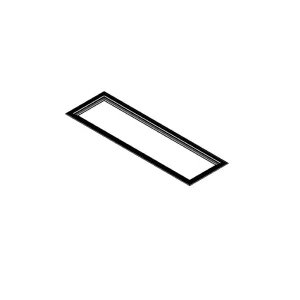

With appropriate accessories, to be ordered separately, it can be installed:

- flush-mounted with springs on false ceiling

- recessed resting on a special aluminum profile to be smoothed

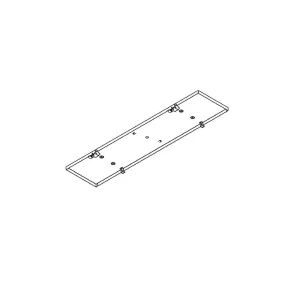

- ceiling mounted

- suspended

Materials

• In powder coated steel sheet and methacrylate lenses.

Wiring

• Electronic power supply included 220-240V 50 / 60Hz (external power supply to the LED panel and to be connected to it via suitable quick connectors).
• DALI / PUSH / 1-10V dimmable version available (ON REQUEST).
• 1 hour or 3 hour continuous service emergency kit available to be ordered separately.
• Total power: 56W

Sources

• Type:  LED
• White color
• Power: 50W
• Color temperature:  4000K
• MacAdam:  <4 SDCM
• CRI:  >90

Nominal flux (Tc = 25° C): 8359 lm

Useful Life (Ta = 25° C): 50000h L80 B20

Lamp supplied
