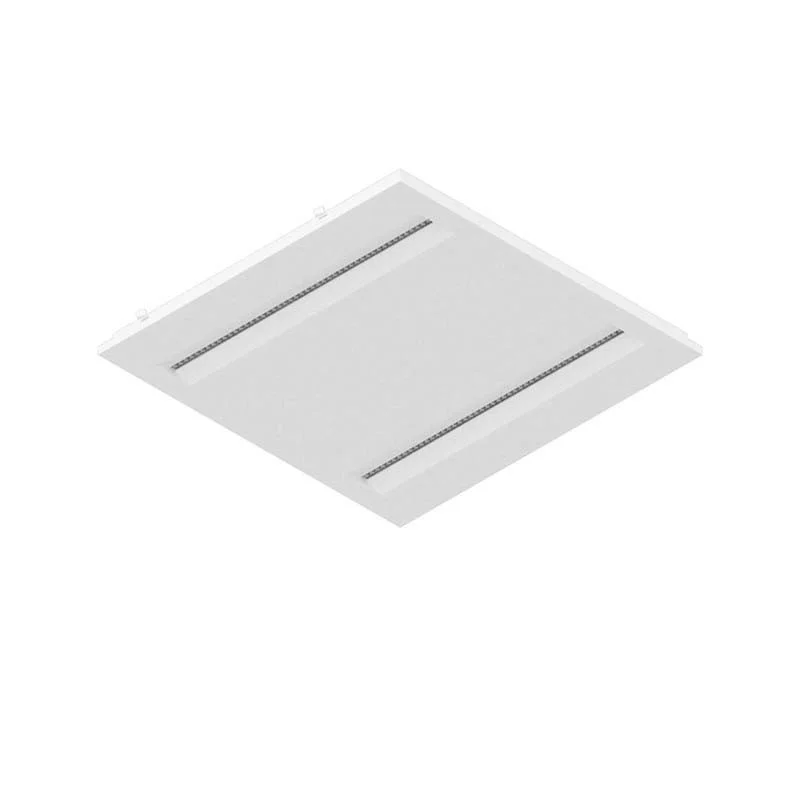

Novalux SCHOOL 30W UGR CRI90 LED Panel 4895lm 600x600mm Recessed In False Ceiling

LED luminaire, 600x600mm, for lighting environments where luminance control is required under all conditions (UGR<19, luminance <3000cd/m² for angles γ> 65°). LED sources CRI>90 neutral white (4000K) at very high efficiency. Direct emission.

600x600mm fixture can be recessed without accessories onto panelled 600x600mm visible structure false ceilings.

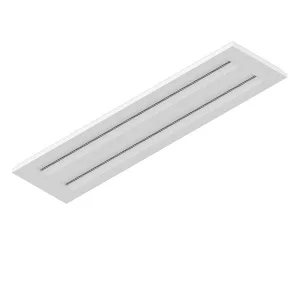

With proper accessories to be ordered separately, both fixtures (600x600 and 1200x300) can be installed:

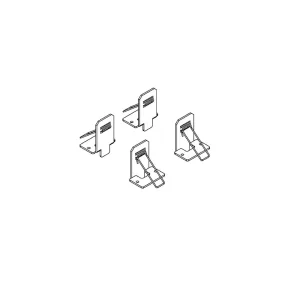

- recessed in plasterboard by clips

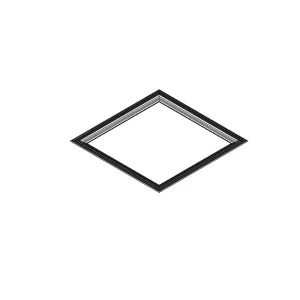

- recessed by gravity on aluminum profile to be levelled

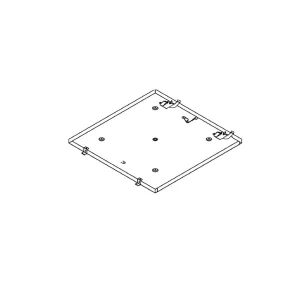

- ceiling mounted

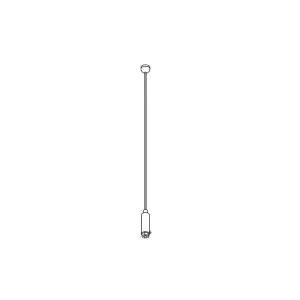

- suspended

Separability of components for complete disposal at the end of their life.

Electronic power supply included.

Materials

• In powder coated steel sheet and methacrylate lenses.

Wiring

• Electronic power supply included 220-240V 50 / 60Hz (external power supply to the LED panel and to be connected to it via suitable quick connectors).
• DALI / PUSH / 1-10V dimmable version available (ON REQUEST).

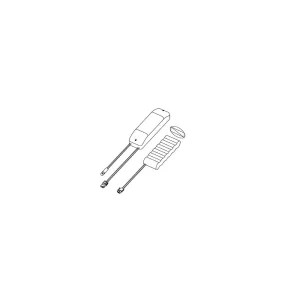

• 1 hour or 3 hour continuous service emergency kit available to be ordered separately.

Total power: 34W

Sources

• Type:  LED
• White color
• Power:  30W
• Color temperature:  4000K
• CRI:  >90

Nominal flux (Tc = 25° C): 4895 lm

Useful Life (Ta = 25° C): 50000h L80 B20

Lamp supplied
