Mini Switch On/Off touch and dimmer for Strip LED with memory for Aluminum Profiles

E1-C

Trustpilot
$16.42

Electronic switch with touch spring to be incorporated and connected to 12V and 24Volt LED strips with memory and dimmer function included in the switch. Ideal to be applied inside aluminum profiles and profiles. It manages up to a maximum of 72W at 24V and 36W at 12V.

Read more ...
Quantity
local_shipping Not available


payments You can pay in installments with PAYPAL OR SCALAPAY
Description
Product Information:

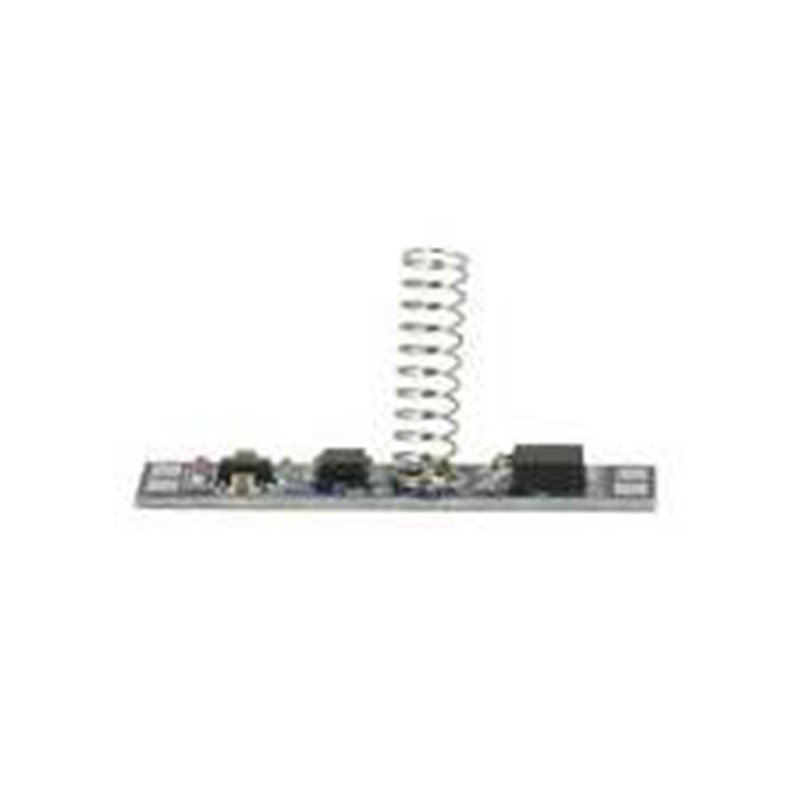

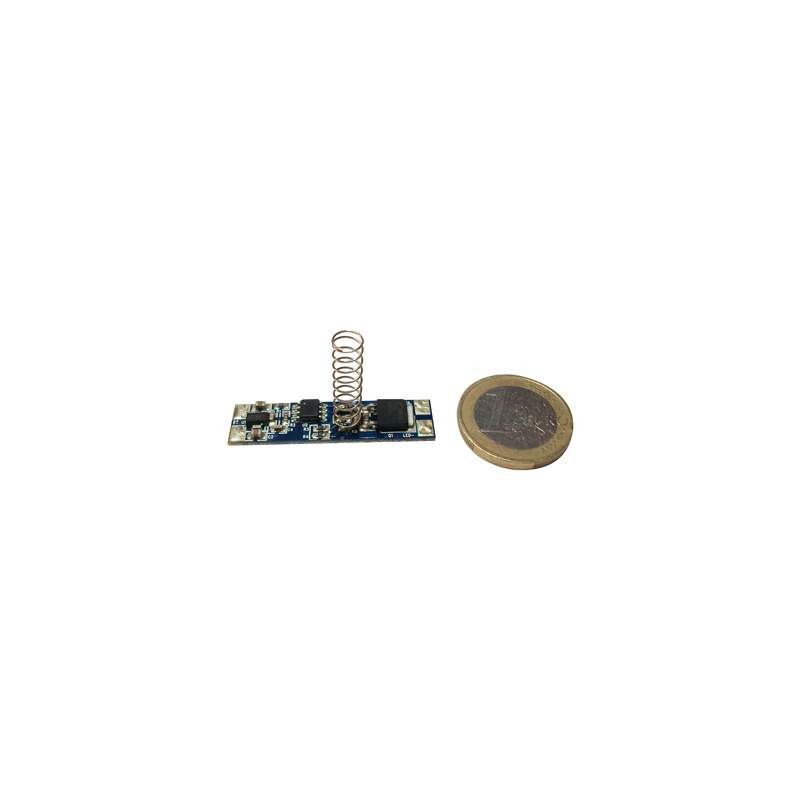

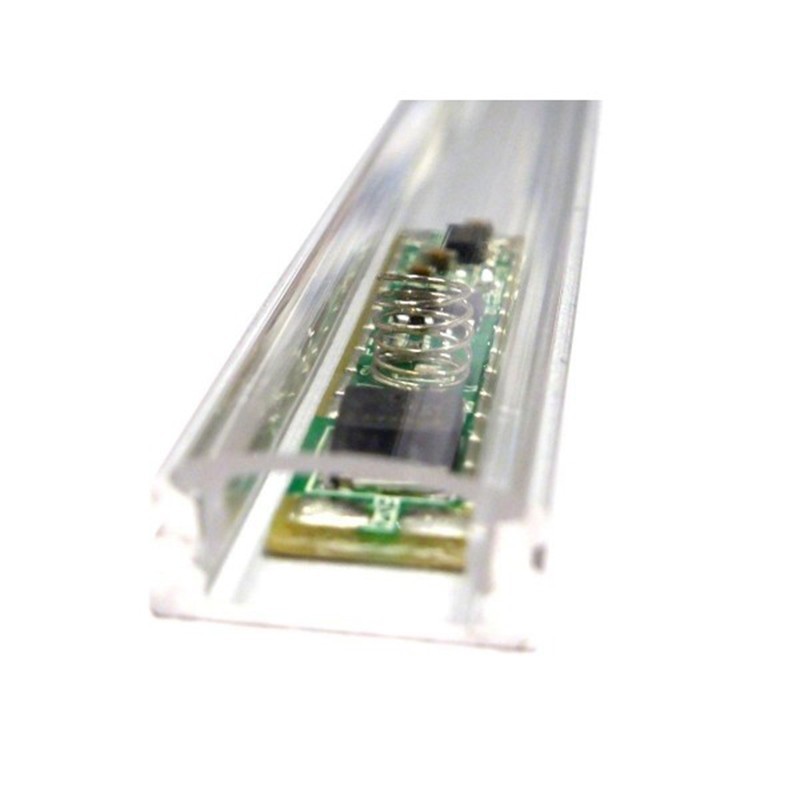

Constant voltage monochromatic mini touch dimmer, 1 channel. High sensitivity touch operation with LED indicator. 3 A per channel, maximum output power 72 W at 24 V. The holder on the touch spring can be a polycarbonate diffuser, an acrylic panel or a mirror glass. Ideal to be inserted inside the aluminum profile, the double-sided adhesive on the back simplifies installation.

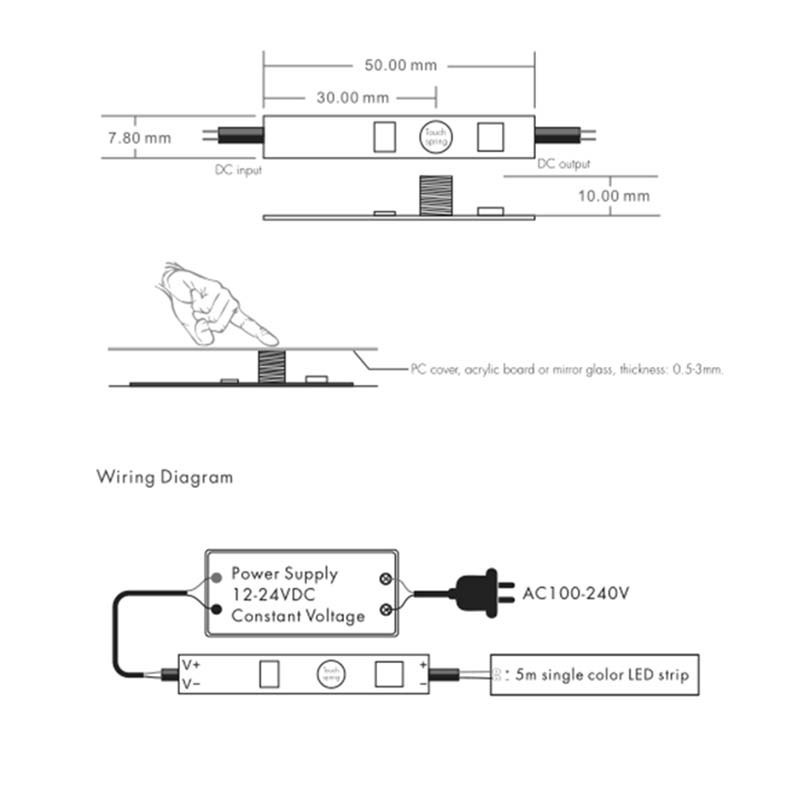

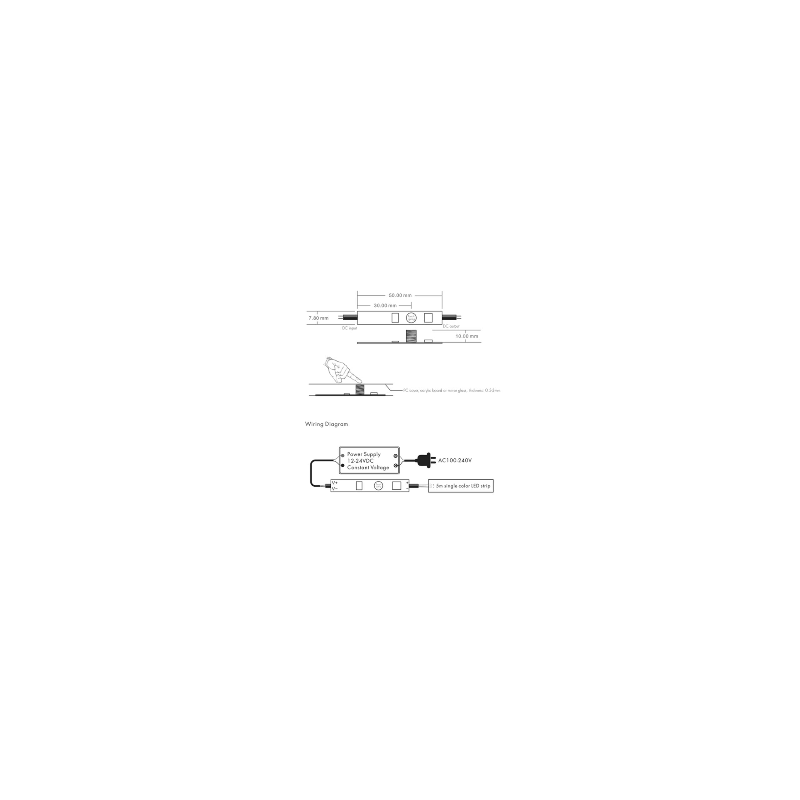

For installation it is necessary to connect the OUT side to the led strip and the IN side to the power supply.

Features:

  • Technical parameters:
  • Input and output voltage: 12-24V
  • Maximum load at 12V: 36W
  • Maximum load at 24V: 72W
  • Receiver dimensions: 50x7.8x10 mm
Warranty 2 Years
100% original product by

Product Details

Data sheet

Barcode:
8052575971287
Reference
E1-C
Input voltage
12-24 V DC
Output voltage
12 / 24V DC
Depth in mm
10
Width in mm
7,8
Length in mm
50
Degree of protection
IP20
Adjustable power
Dimmable
Current carrying capacity
3A
Insulation class
Insulation class III
Compatible current
EU-AUD-USA-UK-JAP
