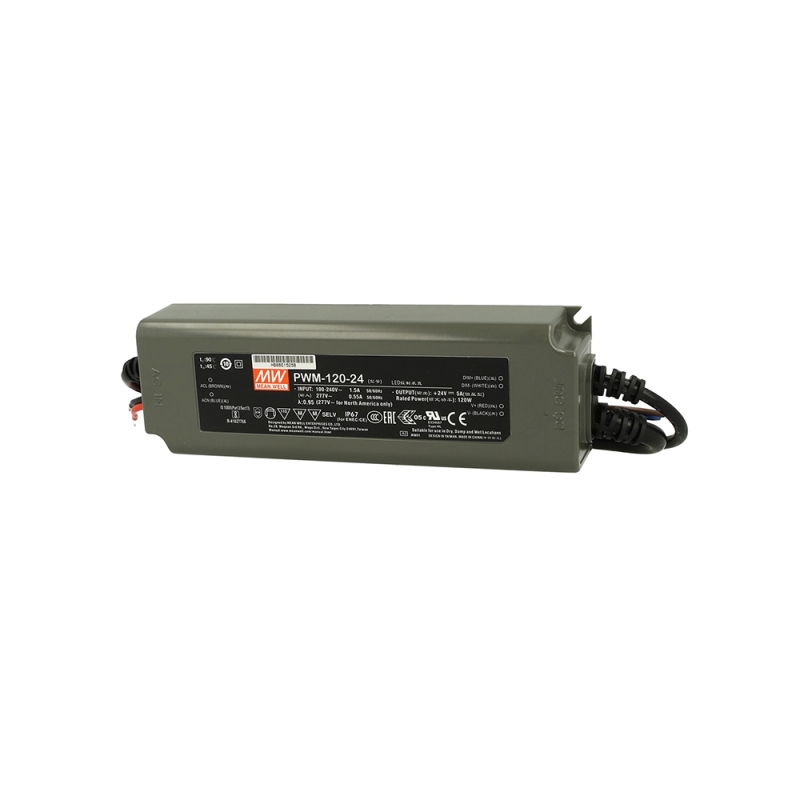

Meanwell PWM driver led 120W 24V waterproof

PWM-120-24 is a 120W AC/DC LED driver featuring constant voltage mode with PWM style output, capable of maintaining color temperature and brightness homogeneity while operating all types of strips LEDs. PWM-120-24 operates from 90~305V AC at 24V. Thanks to the high efficiency of 90%, with the fanless design, it is capable of operating for case temperatures of -40°C +85°C under free air convection conditions. This power supply has an IP67 ingress protection rating and is suitable for operation in dry, damp or wet environments. The PWM-120-24 features a dimming function that varies the duty cycle of the output, providing great flexibility for LED strip applications.

Characteristics:

• Constant voltage: 24V
• Current: 5A
• Power: 120W
• Efficiency: 90%
• Dimensions: 191x63x37.5mm
• No-load power consumption <0.5W
• Frequency range: 47-63Hz
• For outdoor: IP67

For more information, see the attached PDF
