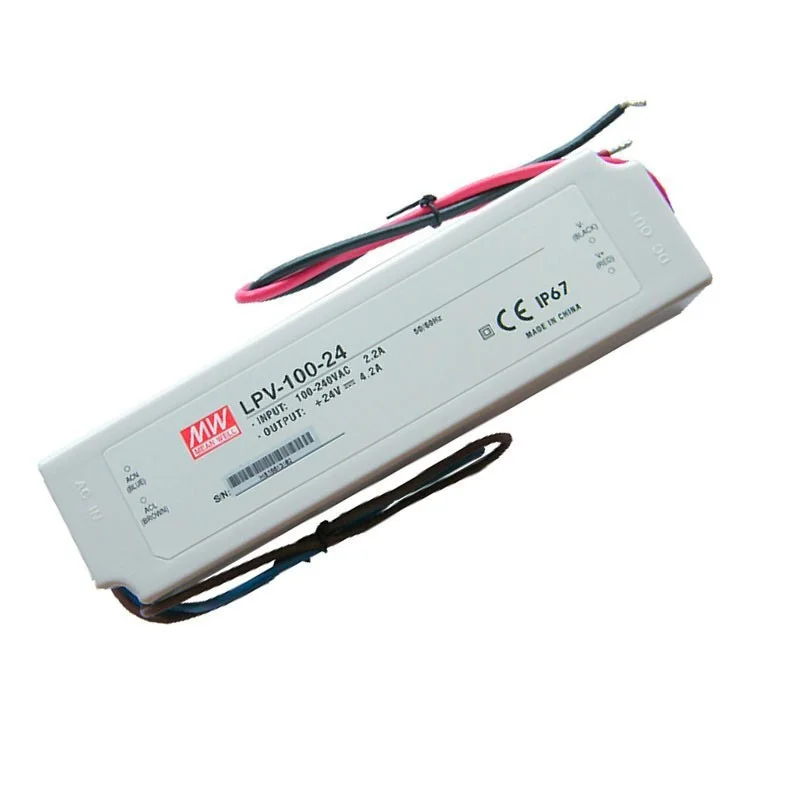

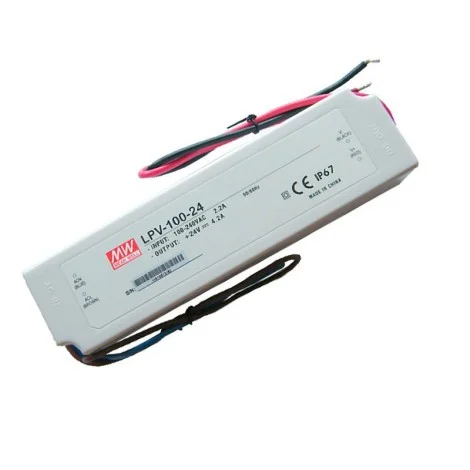

Meanwell Power Supply LPV-100-24 100W 24V IP67 4.5A IP67 LED Constant Voltage Driver

The Mean Well LPV-100-24 power supply is a constant voltage 24V DC LED driver rated at 100W and 4.5A, engineered for reliable and high-performance operation in any installation environment. With an IP67 protection rating, it is fully waterproof thanks to its epoxy resin encapsulation within a polycarbonate housing, making it equally suited for indoor and outdoor use.

Compatible with 100-240V AC input voltage, this power supply operates worldwide across EU, USA, UK, Australian and Japanese markets. With 85% efficiency and a fully regulated output, it is the ideal solution for professional LED installations requiring consistent and precise power delivery.

Key Technical Specifications

The LPV-100-24 belongs to Mean Well's LPV-100 series and delivers a stable constant 24V DC output at up to 4.5A. Its compact dimensions of 190 x 52 x 29 mm allow installation even in confined spaces. The unterminated bipolar 600mm input cable in 18 AWG provides wiring flexibility. The unit is rated Insulation Class II and passes a 100% full-load burn-in test.

Safety and Protections

The driver features built-in protection against short circuit, overload and overvoltage, ensuring full system safety. It withstands input voltage spikes of up to 300V AC for 5 seconds, a key advantage for installations in areas prone to power fluctuations.

Applications

Perfect for LED strips, illuminated signage, architectural lighting and outdoor applications, the Mean Well LPV-100-24 is the professional choice for those seeking a waterproof LED power supply that is robust, efficient and certified for exterior use.
